Headlamp Switch: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. Refer to: Driver Knee Airbag .
  3. Remove the LH instrument panel side trim panel and the steering column cover trim panel.

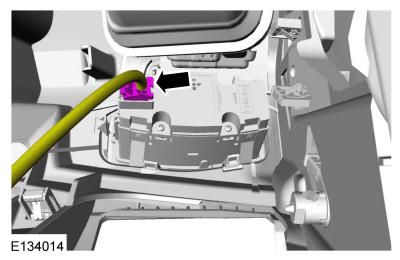

  4. Disconnect the headlamp switch electrical connector.
    GFD269806Courtesy of FORD MOTOR COMPANY

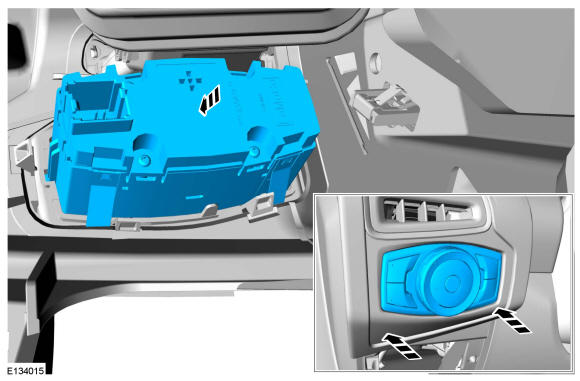

  5. Release the tabs and remove the headlamp switch.
GFD269807Courtesy of FORD MOTOR COMPANY
