Headlamp Control Module (HCM): Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.
Using a diagnostic scan tool, begin the PMI process for the HCM following the on-screen instructions.
- Remove the driver knee airbag. Refer to: Driver Knee Airbag .

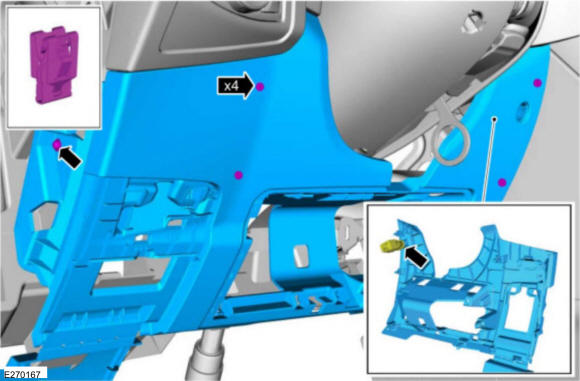

- Remove the retainers and the steering column opening trim panel.
- Disconnect and position aside the air sensor.

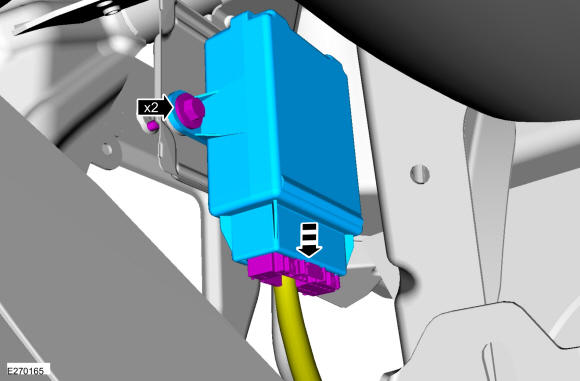

- Remove the bolts and the HCM.
- Disconnect the electrical connector.
