Headlamp Bulb: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

All bulbs

Remove the headlamp assembly. Refer to: Headlamp Assembly .
Headlamp bulb high intensity discharge low beam bulb

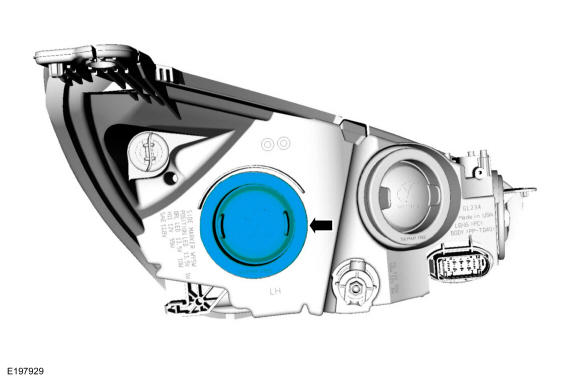

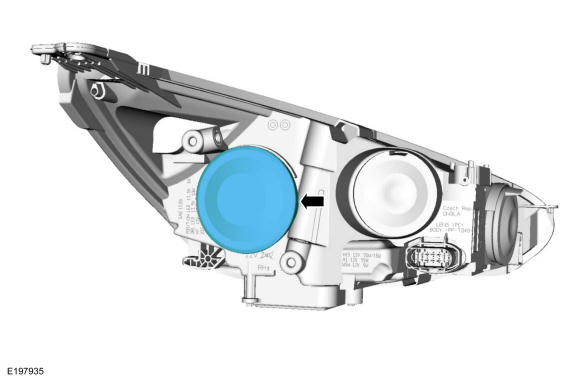

Remove the low beam headlamp bulb cover.

Courtesy of FORD MOTOR COMPANY

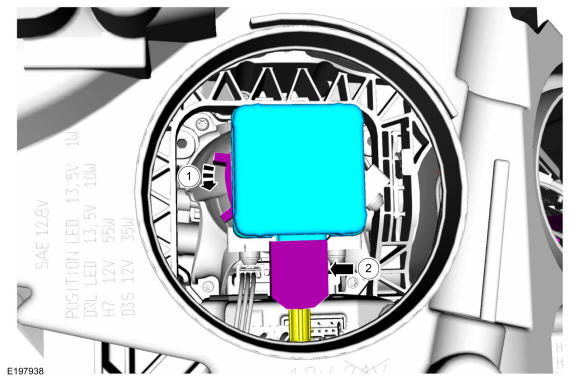

Remove the headlamp bulb.
1. Release the headlamp bulb retaining ring.
2. Disconnect the headlamp bulb electrical connector.
Courtesy of FORD MOTOR COMPANY

Halogen low beam bulb
Remove the low beam headlamp bulb cover.

Courtesy of FORD MOTOR COMPANY

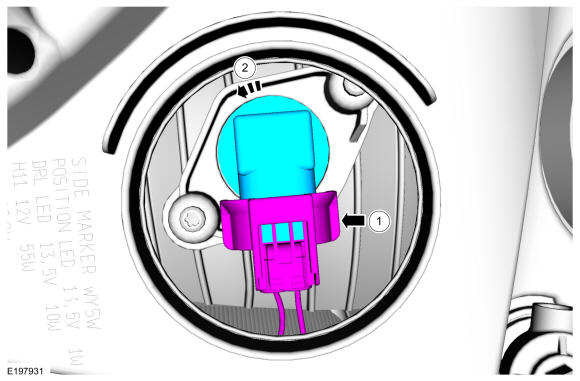

Disconnect and remove the low beam headlamp bulb.
1. Disconnect the headlamp bulb electrical connector.
2. Turn the headlamp bulb counter clock-wise.
Courtesy of FORD MOTOR COMPANY

High beam headlamp bulb

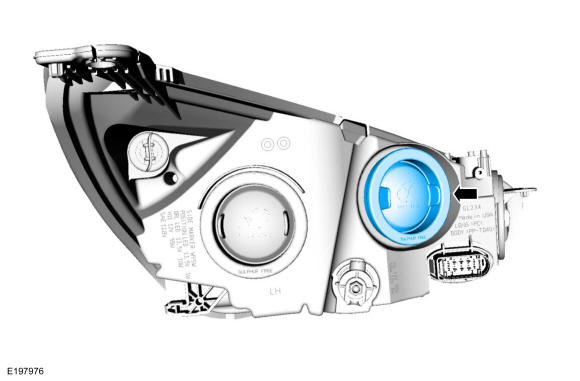

Remove the high beam headlamp bulb cover.

Courtesy of FORD MOTOR COMPANY

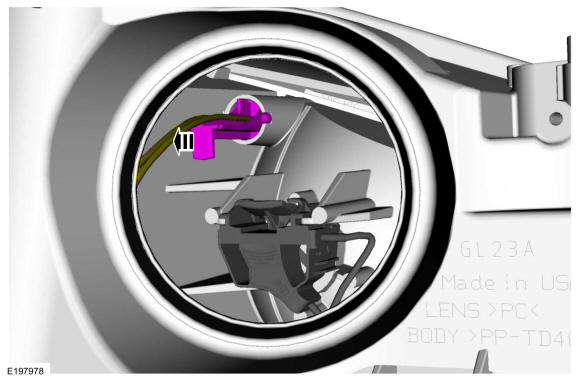

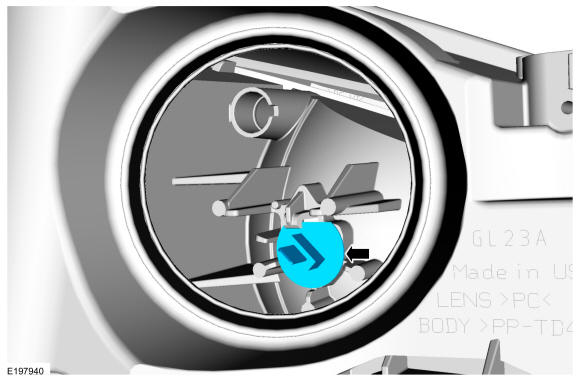

Disconnect the high beam headlamp bulb.

Courtesy of FORD MOTOR COMPANY
Remove the high beam headlamp bulb.

Courtesy of FORD MOTOR COMPANY

Position lamp bulb
Remove the high beam headlamp bulb cover.

Courtesy of FORD MOTOR COMPANY

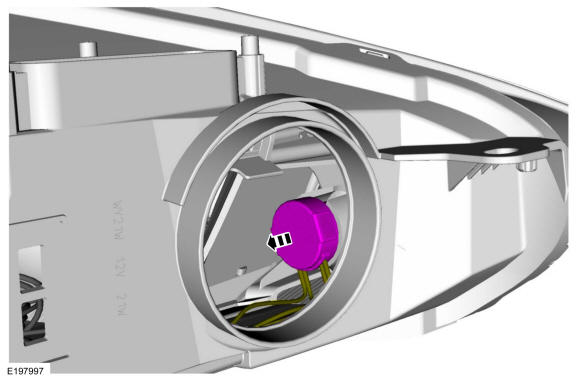

Remove the bulb holder.

Courtesy of FORD MOTOR COMPANY

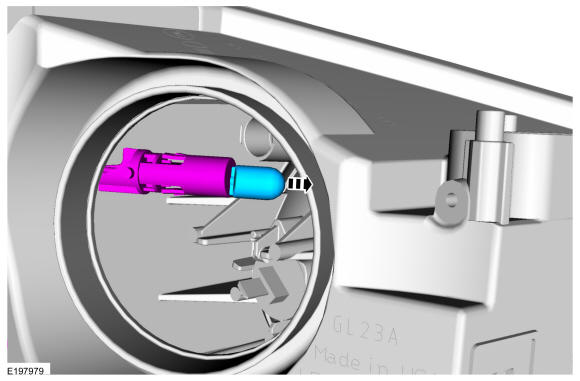

Remove the position lamp bulb.

Courtesy of FORD MOTOR COMPANY

Turn signal lamp bulb

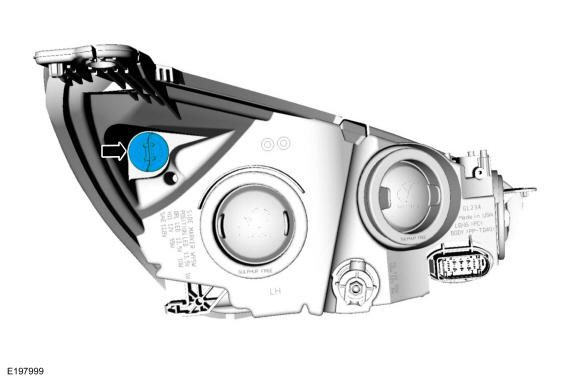

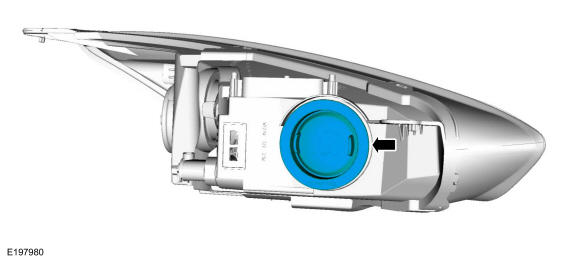

Remove the turn signal bulb cover.

Courtesy of FORD MOTOR COMPANY

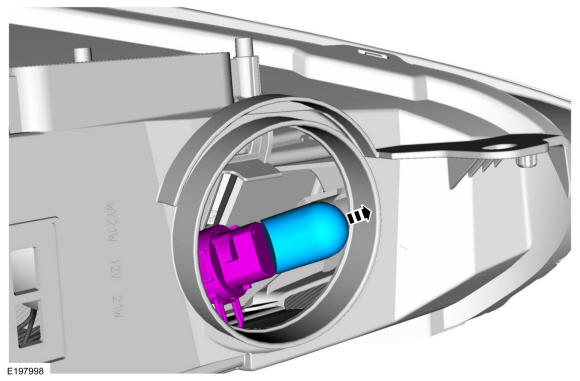

Remove the turn signal bulb holder.

Courtesy of FORD MOTOR COMPANY

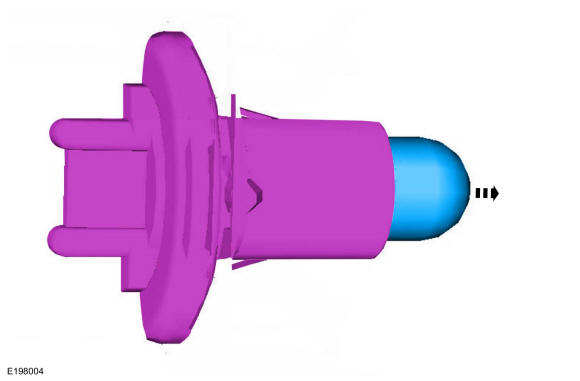

Remove the turn signal bulb.

Courtesy of FORD MOTOR COMPANY

Side marker lamp bulb
Remove the side marker lamp bulb holder.

Courtesy of FORD MOTOR COMPANY
Remove the side marker lamp bulb.

Courtesy of FORD MOTOR COMPANY
