Headlamp Assembly: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the headlamp assembly.

    • Remove the screws.

    • Position the headlamp assembly up and disconnect the electrical connector.

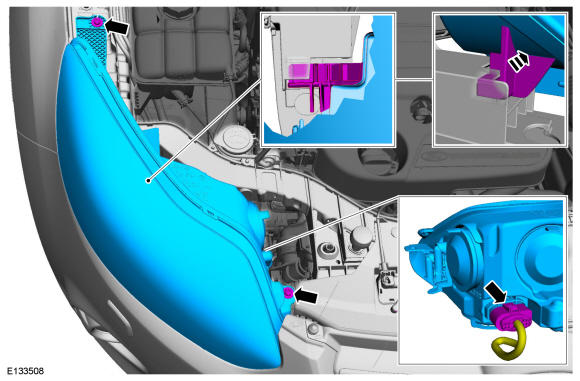

GFD269789Courtesy of FORD MOTOR COMPANY
