Front Fog Lamp: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

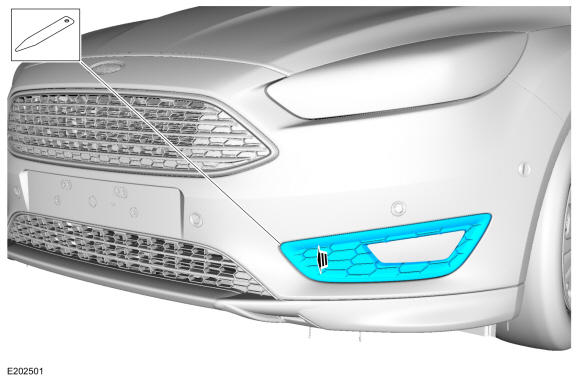

  1. Release the tabs and remove the fog lamp bezel.
    GFD269781Courtesy of FORD MOTOR COMPANY

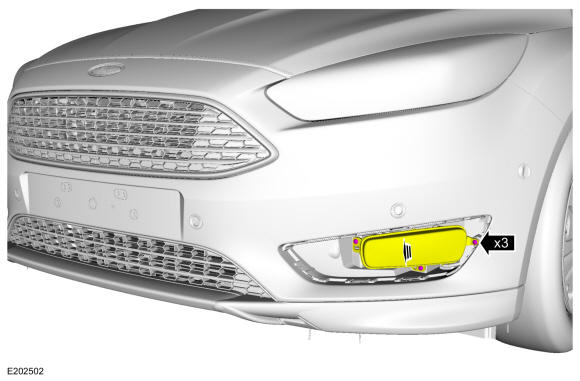

  2. Remove the screws and the fog lamp assembly.
    GFD269782Courtesy of FORD MOTOR COMPANY

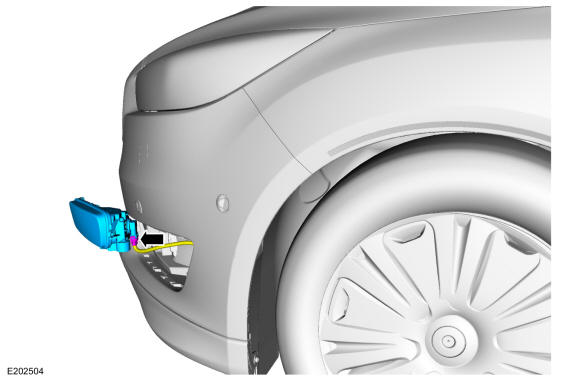

  3. Disconnect the fog lamp electrical connector.
GFD269783Courtesy of FORD MOTOR COMPANY
