Removal And Installation: Ballast: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlamp assembly. Refer to: Headlamp Assembly  .

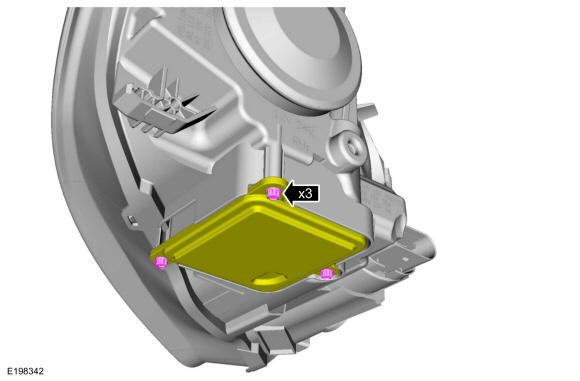

  2. Remove the screws and position the headlamp ballast aside.
    GFD269821Courtesy of FORD MOTOR COMPANY
  3. Disconnect the ballast electrical connectors.
