Adaptive Front Lighting Module: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles that have not previously had the adaptive front lighting module replaced

  1. Cut a hole in the headlamp housing.

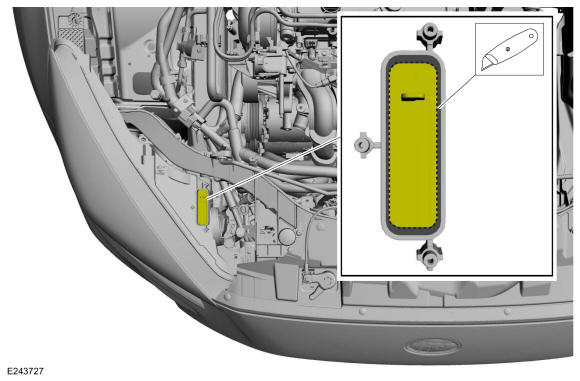

    GFD269771Courtesy of FORD MOTOR COMPANY
  2. Remove the headlamp assembly. Refer to: Headlamp Assembly  .
  3. Remove the cut section of the headlamp assembly housing.

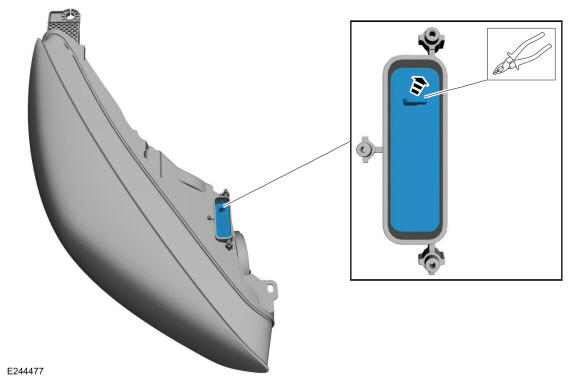

    GFD269772Courtesy of FORD MOTOR COMPANY
  4. Remove the adaptive front lighting module.
    GFD269773Courtesy of FORD MOTOR COMPANY

    Vehicles that have previously had the adaptive front lighting module replaced

  5. Remove the headlamp assembly. Refer to: Headlamp Assembly  .
  6. Remove the adaptive front lighting module bracket screws.

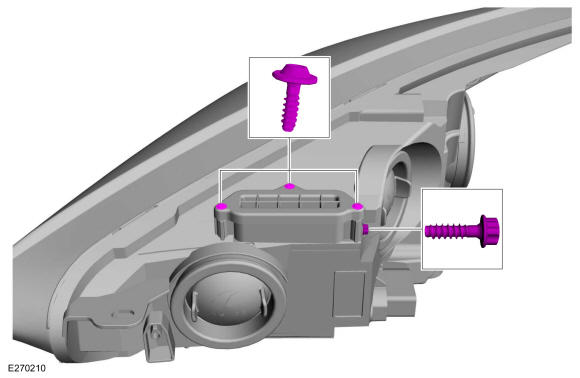

    GFD269774Courtesy of FORD MOTOR COMPANY
  7. Remove the adaptive front lighting module.

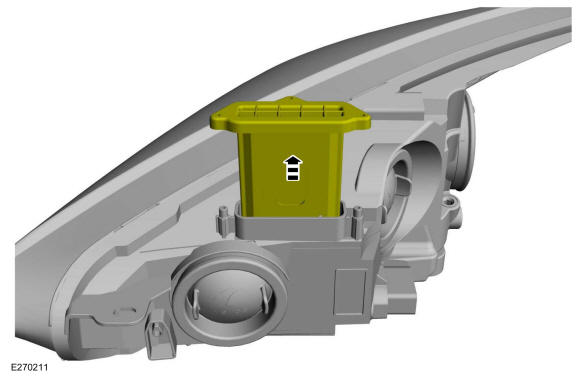

    GFD269775Courtesy of FORD MOTOR COMPANY

    All vehicles

  8. NOTE: Do not pull on the wire harness to disconnect/connect the connector or damage to the connector/wire harness will occur.

    Remove the adaptive front lighting module connector.

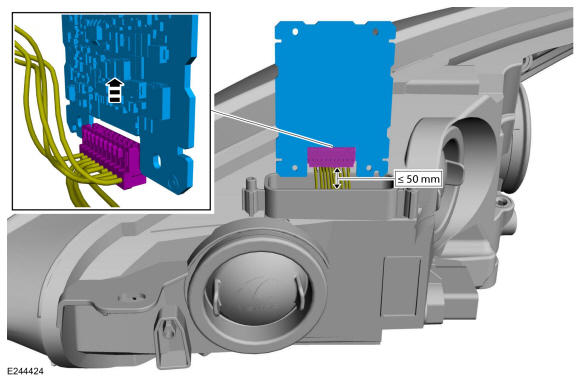

GFD269776Courtesy of FORD MOTOR COMPANY
