Adaptive Front Lighting Module: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

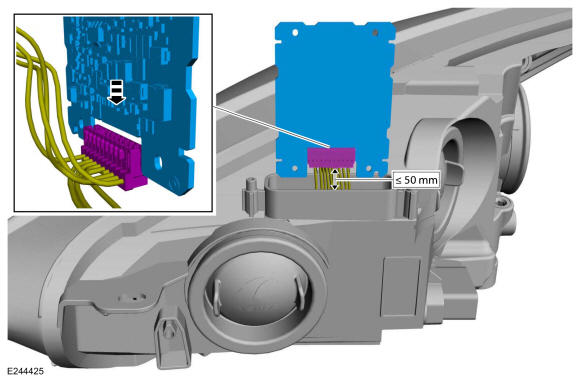

  1. NOTE: Do not pull on the wire harness to disconnect/connect the connector or damage to the connector/wire harness will occur.

    Connect the adaptive front lighting module connector.

    GFD269777Courtesy of FORD MOTOR COMPANY

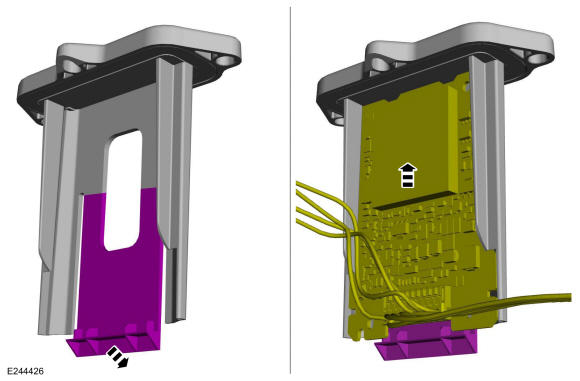

  2. Attach the adaptive front lighting module to the bracket.
    GFD269778Courtesy of FORD MOTOR COMPANY

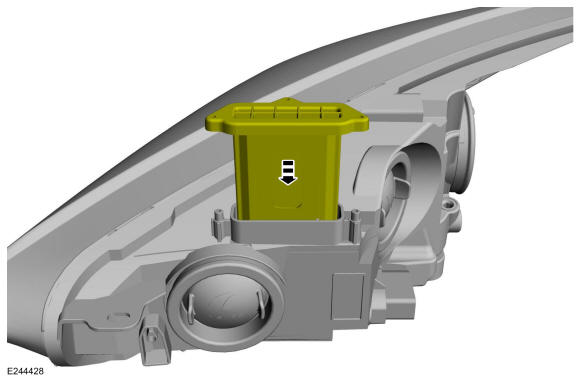

  3. Install the adaptive front lighting module and bracket into the headlamp housing.
    GFD269779Courtesy of FORD MOTOR COMPANY
  4. Install and tighten adaptive front lighting module bracket screws.
    GFD269774Courtesy of FORD MOTOR COMPANY
  5. Install the headlamp assembly. Refer to: Headlamp Assembly  .
