Universal Serial Bus (USB) Hub: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

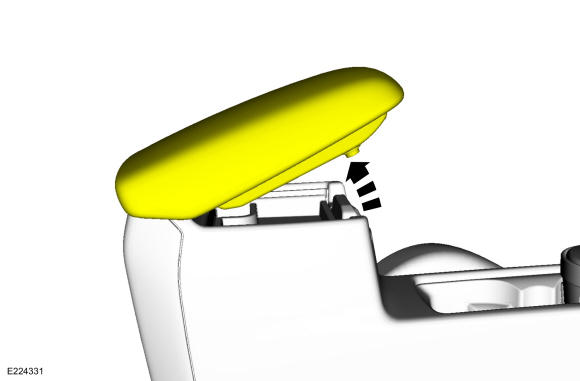

  1. Open the floor console arm rest.
    GFD269754Courtesy of FORD MOTOR COMPANY

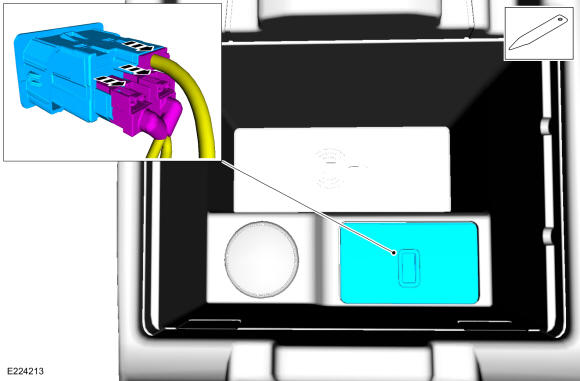

  2. Remove the media hub.

    • Disconnect the electrical connectors.

GFD269755Courtesy of FORD MOTOR COMPANY
