Subwoofer Speaker: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. Remove the spare tire cover.
    GFD269585Courtesy of FORD MOTOR COMPANY

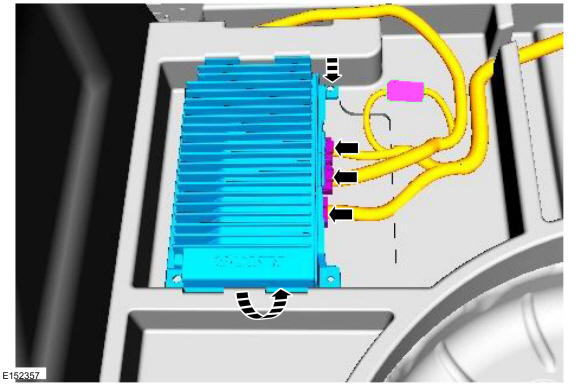

  3. Disconnect the electrical connectors, remove the screws and the DSP.
    GFD269729Courtesy of FORD MOTOR COMPANY

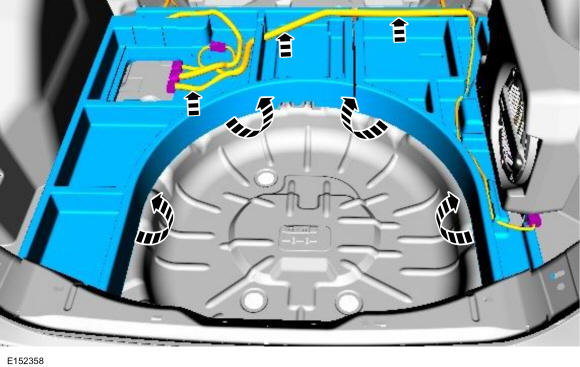

  4. Disconnect the electrical connector, position the wiring harness aside and remove the load compartment floor sound insulator.
    GFD269748Courtesy of FORD MOTOR COMPANY

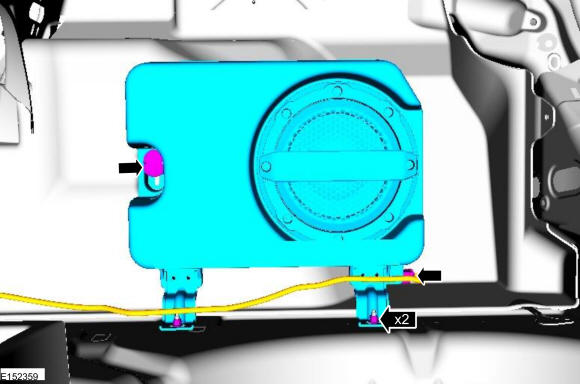

  5. Remove the subwoofer speaker.

    • Disconnect the electrical connector and remove the nuts.

    • Release the retaining tab and remove the subwoofer speaker.

GFD269749Courtesy of FORD MOTOR COMPANY
