Subwoofer Speaker - RS: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the loadspace floor trim panel.
    GFD269585Courtesy of FORD MOTOR COMPANY

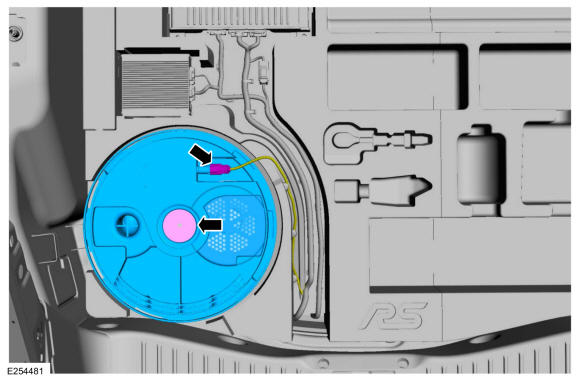

  2. Disconnect the electrical connector, remove the retaining disc and the subwoofer speaker.
GFD269750Courtesy of FORD MOTOR COMPANY
