SYNC Module [APIM] to Front Display Interface Module (FDIM) Cable: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the FDIM. Refer to: Front Display Interface Module (FDIM)  .

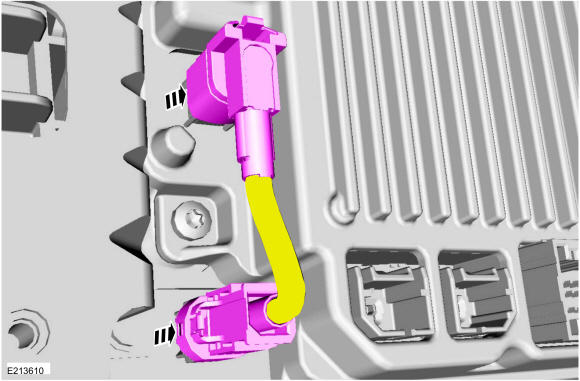

  2. Disconnect the electrical connectors and remove the APIM to FDIM cable.
GFD269753Courtesy of FORD MOTOR COMPANY
