Instrument Panel Center Speaker: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

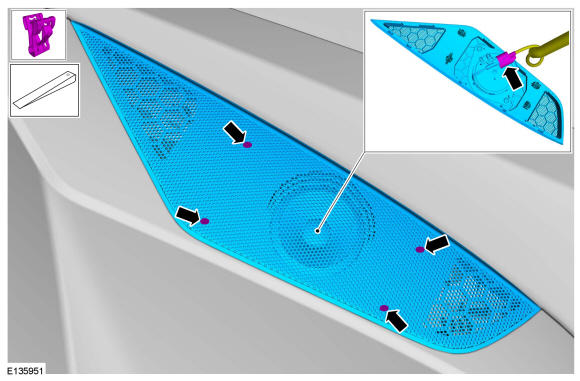

  2. Remove the instrument panel center speaker grille and disconnect the electrical connector.
    GFD269746Courtesy of FORD MOTOR COMPANY

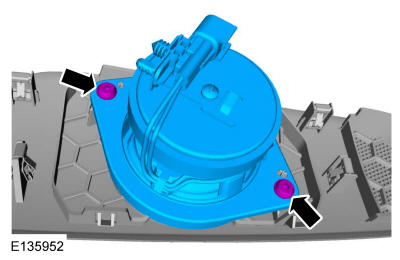

  3. Remove the screws and the instrument panel center speaker.
GFD269747Courtesy of FORD MOTOR COMPANY
