Front Display Interface Module (FDIM): Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the selector lever trim ring. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Remove the RH finish panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Remove and disconnect the passenger air bag off indicator lamp. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Remove the access cover.

Courtesy of FORD MOTOR COMPANY
Release the retainers and remove the floor console trim panel.

Courtesy of FORD MOTOR COMPANY
Remove the screws, release the clips and remove the floor console upper finish panel.
- Disconnect the electrical connectors.
  Torque

  : 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

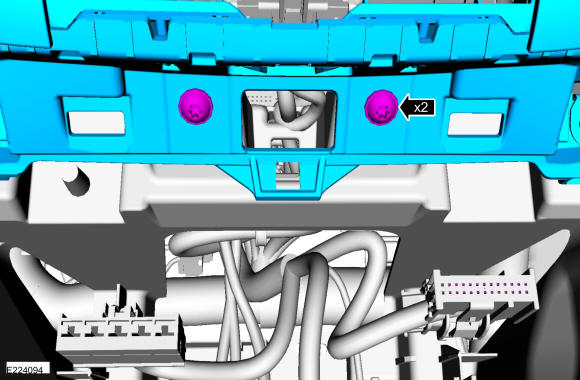

Remove the lower FCIM screws.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
Release the clips, disconnect the electrical connectors and remove the instrument panel center middle trim panel.

Courtesy of FORD MOTOR COMPANY
Remove the screws and the FDIM.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary if replacing the FDIM.

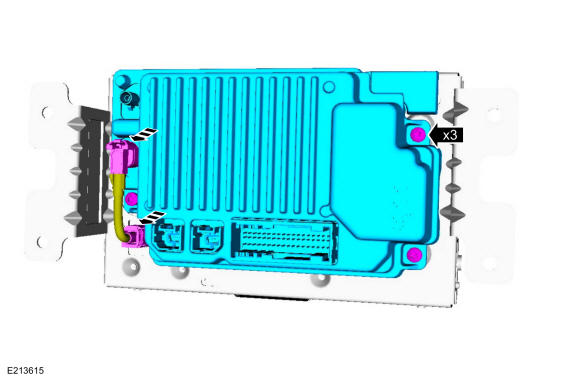

Remove the screws and separate the FDIM from the APIM.
- Disconnect the electrical connector.
  Torque

  : 9 lb.in (1 Nm)

Courtesy of FORD MOTOR COMPANY
