Digital Audio Control Module C (DACMC): Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. NOTE: This step is only necessary when installing a new component.

    Download the module information to the diagnostic tool using the Programmable Modules Installation routine.

GFD269585Courtesy of FORD MOTOR COMPANY

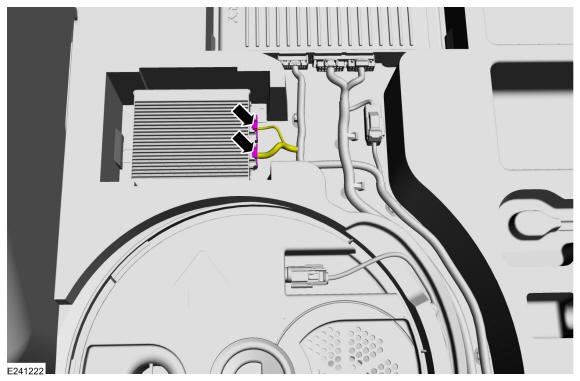

GFD269739Courtesy of FORD MOTOR COMPANY

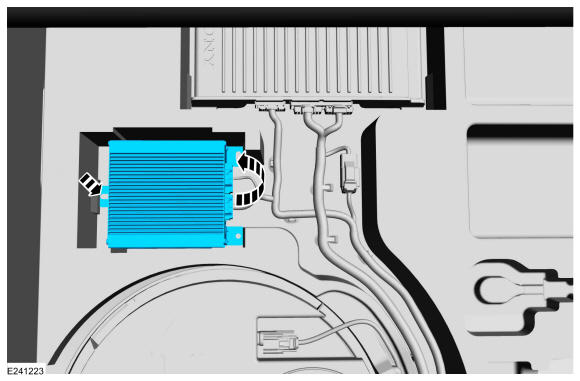

GFD269740Courtesy of FORD MOTOR COMPANY
