Audio Unit Antenna: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- Remove D-pillar trim panel. Refer to: D-Pillar Trim Panel - 4-Door . Refer to: D-Pillar Trim Panel - 5-Door .
- Lower the rear of the headliner for access.
- With the help of an assistant.

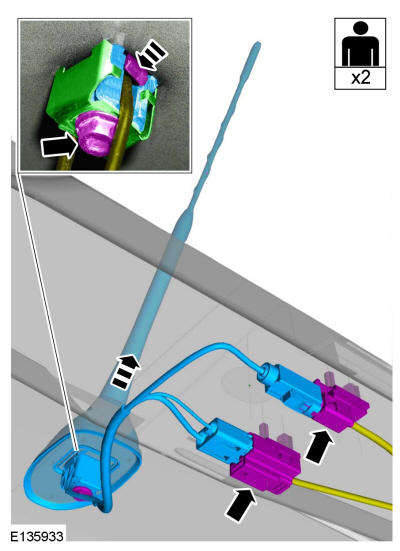

- Disconnect the electrical connectors.
- Remove the bolt, release the retaining tab and remove the audio unit antenna mast.
Torque
: 89 lb.in (10 Nm)
