Audio Unit Antenna Cable: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The body antenna cables are part of the vehicle wiring harness. Because the antenna cable cannot be removed from the body harness this procedure applies to overlaying the antenna cable on the existing body harness.

NOTE: Steps 1 thru 9 apply for access to the instrument panel antenna cable only.

NOTE: Sony® sound shown, premium and base audio similar.

Remove the RH cover. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

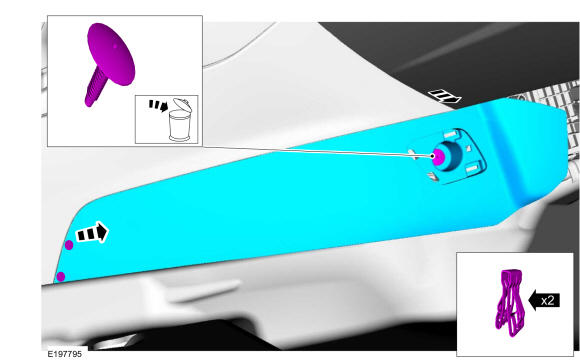

Remove and discard the push pin, release the clips and remove the RH floor console lower trim panel.

Courtesy of FORD MOTOR COMPANY

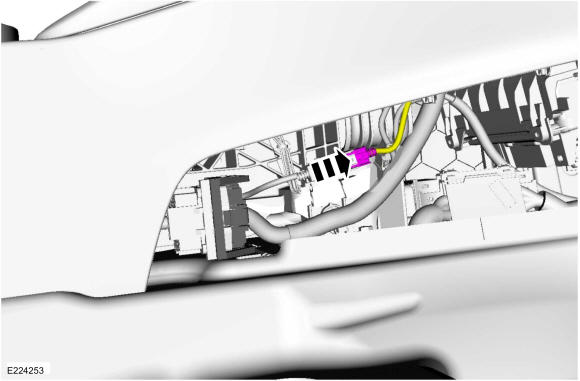

Disconnect the body to instrument panel antenna cable in-line connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Automatic transmission shown, manual transmission similar.

Remove the selector lever trim ring. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Remove the instrument panel center finish panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Release the clips and remove the floor console upper finish panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Remove the screws, release the clips and remove the floor console upper trim panel.
- Disconnect the electrical connectors.
  Torque

  : 18 lb.in (2 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the bolts and the ACM.
- Disconnect the electrical connectors.
  Torque

  : 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY

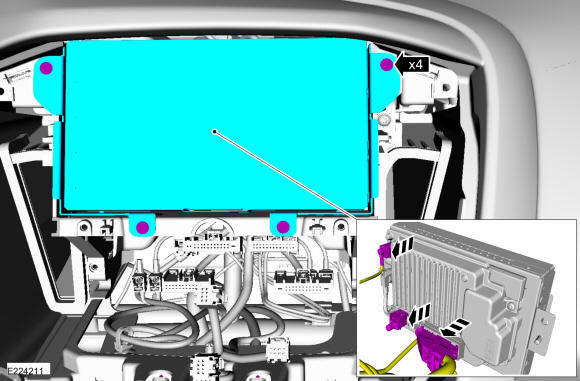

Remove the bolts and the FDIM.
- Disconnect the electrical connectors.
  Torque

  : 22 lb.in (2.5 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: Steps 10 thru 15 apply for access to the body antenna cable only.

Remove the headliner. Refer to: Headliner - 4-Door . Refer to: Headliner - 5-Door .
Remove lower B-pillar trim panel.

Courtesy of FORD MOTOR COMPANY
NOTE: 5-door only

Remove the following items:
1. Remove the passenger front seat. Refer to: Front Seat .
2. Remove the gearshift lever. Refer to: Gearshift Lever - 6-Speed Manual Transmission - B6/6-Speed Manual Transmission - MMT6 . Refer to: Selector Lever Assembly .
3. Remove the parking brake control. Refer to: Parking Brake Control .
Disconnect antenna connectors, release the retaining tabs and position the wiring harness aside.

Courtesy of FORD MOTOR COMPANY

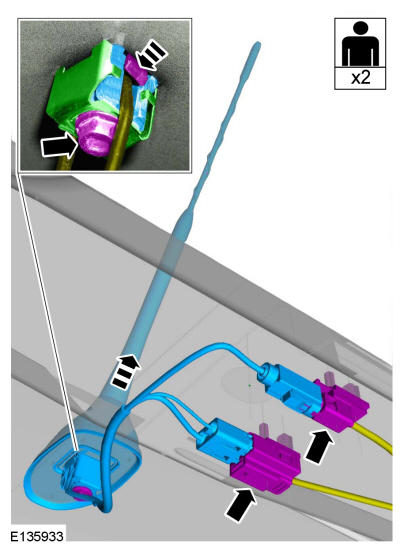

With the hep of an assistant.
- Disconnect the electrical connectors.
- Remove the bolt, release the retaining tab and remove the audio unit antenna mast.
  Torque

  : 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
Position aside the RH front carpet.

Courtesy of FORD MOTOR COMPANY
