Audio Unit Antenna Cable: Installation

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

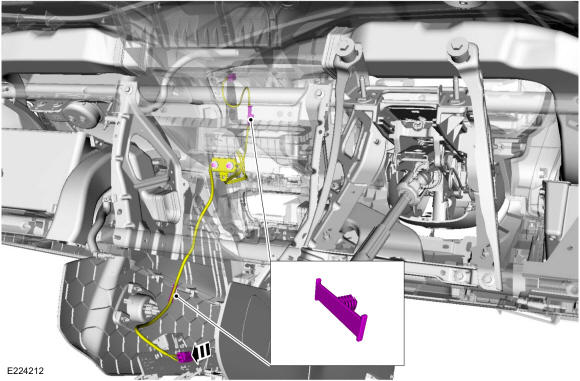

  1. NOTE: Instrument panel antenna cable.

    Route the new instrument panel antenna cable following the routing shown.

    GFD269737Courtesy of FORD MOTOR COMPANY

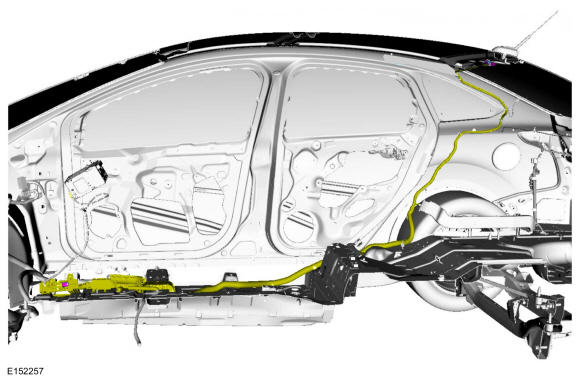

  2. NOTE: Body antenna cable.

    Overlay the new body antenna cable on the vehicle wiring harness following the routing of the original cable. Cut the ends off of the existing cables.

    GFD269738Courtesy of FORD MOTOR COMPANY
  3. To install, reverse the removal procedure.
