Audio Digital Signal Processing (DSP) Module - RS: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

    Upload the DSP configuration information to the scan tool by following the scan tool on screen instructions.

  2. Remove the loadspace floor trim panel.
    GFD269585Courtesy of FORD MOTOR COMPANY

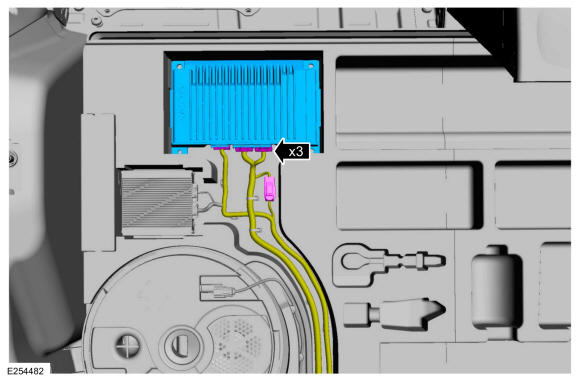

  3. Disconnect the electrical connectors and remove the DSP.
GFD269730Courtesy of FORD MOTOR COMPANY
