Section 1575 (Information And Entertainment System - General Information - Vehicles With: SONY Audio System (Except Electric) (1 Of2))
>>
Description And Operation
>>
Information and Entertainment System - System Operation and Component Description
>>

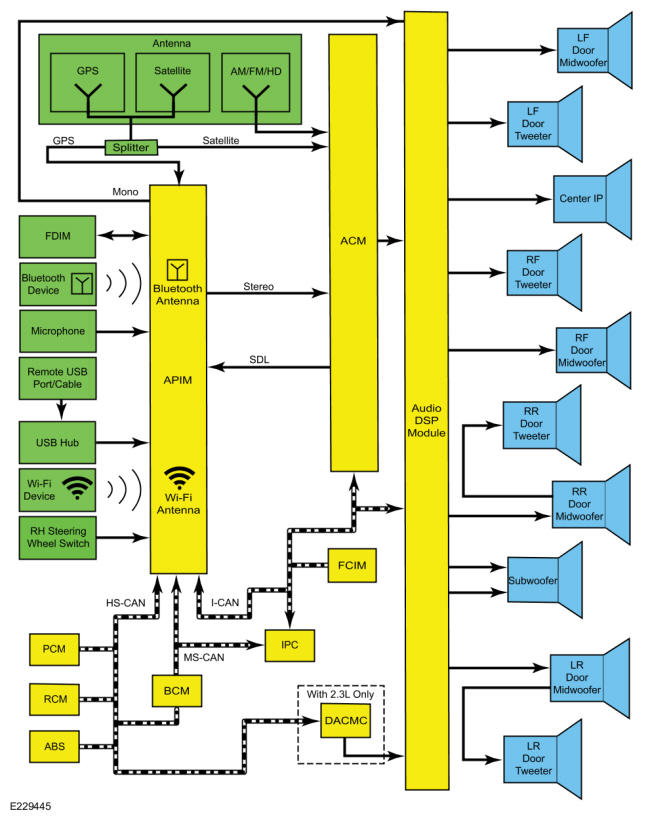

System Diagram
System Diagram
WARNING:
This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
