Information and Entertainment System - Component Location
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|

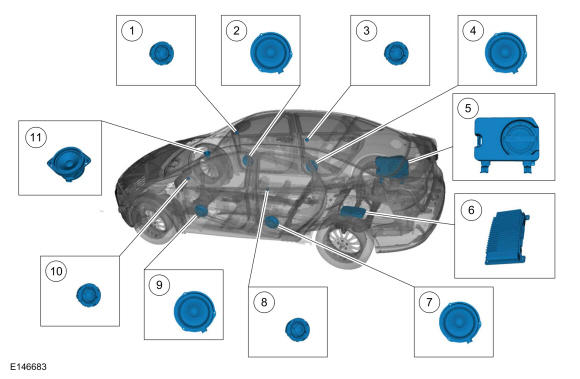

| Item |
Description |
| 1 |
RHF door tweeter speaker |
| 2 |
RHF door midwoofer speaker |
| 3 |
RHR door tweeter speaker |
| 4 |
RHR door midwoofer speaker |
| 5 |
Subwoofer speaker and enclosure assembly |
| 6 |
Audio DSP module |
| 7 |
LHR door midwoofer speaker |
| 8 |
LHR door tweeter speaker |
| 9 |
LHF door midwoofer speaker |
| 10 |
LHF door tweeter speaker |
| 11 |
Center instrument panel speaker |
 Courtesy of FORD MOTOR COMPANY
|

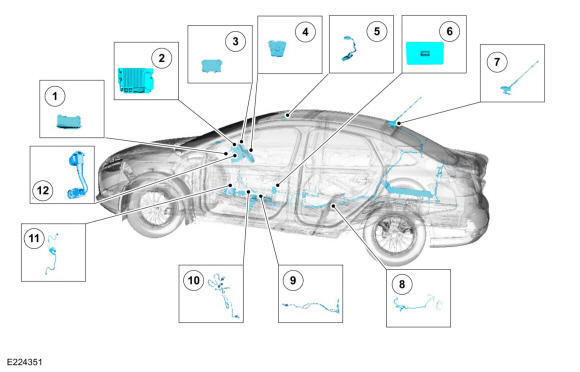

| Item |
Description |
| 1 |
ACM |
| 2 |
APIM, located behind the FDIM |
| 3 |
FDIM, attached to the APIM |
| 4 |
FCIM |
| 5 |
SYNC® microphone (located in the overhead console) |
| 6 |
USB hub, located in the console |
| 7 |
AM/ FM/HD Radio®/satellite radio/ GPS antenna |
| 8 |
Rear AM/ FM/HD Radio® antenna coaxial cable and satellite radio/ GPS coaxial cable assembly |
| 9 |
Remote USB port/cable (located in front of gear selector) |
| 10 |
USB hub to APIM USB cable |
| 11 |
Front AM/ FM/HD Radio® antenna coaxial cable and satellite radio/ GPS splitter/cable assembly |
| 12 |
LVDS cable |
| - |
DACMC (2.3L GTDI) (not shown) |
