Sync Module [Apim]: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal Steps In This Procedure May Contain Installation Details.
  1. Remove The Selector Lever Trim Ring. Use The General Equipment: Interior Trim Remover
    GFD269599Courtesy of FORD MOTOR COMPANY
  2. Remove The Rh Finish Panel. Use The General Equipment: Interior Trim Remover
    GFD269600Courtesy of FORD MOTOR COMPANY

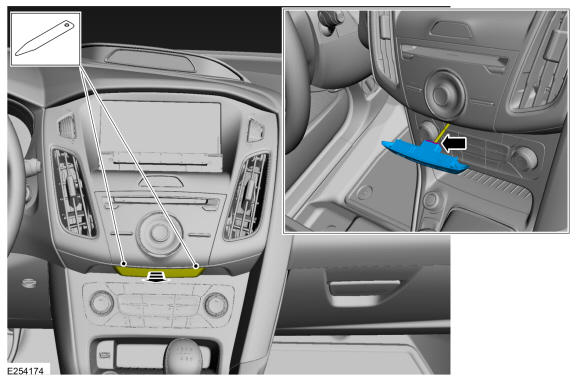

  3. Remove And Disconnect The Passenger Air Bag Off Indicator Lamp. Use The General Equipment: Interior Trim Remover
    GFD269717Courtesy of FORD MOTOR COMPANY
  4. Remove The Instrument Panel Center Finish Panel. Use The General Equipment: Interior Trim Remover
    GFD269601Courtesy of FORD MOTOR COMPANY
  5. Release The Clips And Remove The Floor Console Upper Finish Panel. Use The General Equipment: Interior Trim Remover
    GFD269602Courtesy of FORD MOTOR COMPANY
  6. Remove The Screws, Release The Clips And Remove The Floor Console Upper Trim Panel.

    • Disconnect The Electrical Connectors.

      Torque

      : 18 Lb.In (2 Nm)

    GFD269603Courtesy of FORD MOTOR COMPANY

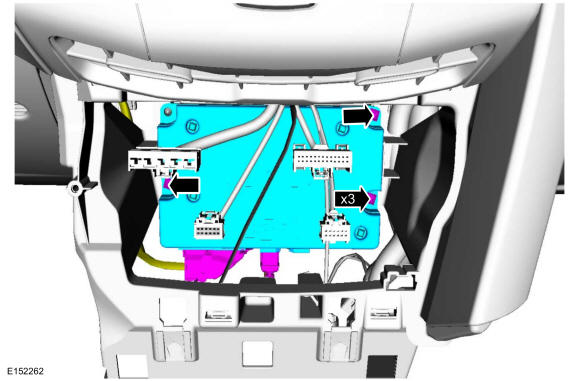

  7. Torque

    : 23 Lb.In (2.6 Nm)

GFD269718Courtesy of FORD MOTOR COMPANY
