Global Positioning System Module (Gpsm): Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If Installing A New Module, It Is Necessary To Upload The Module Configuration Information To The Scan Tool Prior To Removing The Module. This Information Must Be Downloaded Into The New Module After Installation.
NOTE: Removal Steps In This Procedure May Contain Installation Details.
  1. Upload The Gpsm Configuration Information To The Scan Tool By Following The Scan Tool On Screen Instructions.
  2. WARNING: Before Beginning Any Service Procedure In This Article, Refer To Safety Warnings In General Information (Except Electric) . Failure To Follow This Instruction May Result In Serious Personal Injury.

    Refer To: Health And Safety Precautions .

  3. Remove The Retainers And The Rh Insulation Panel.
    GFD269419Courtesy of FORD MOTOR COMPANY
  4. Position The Front Door Weatherstrip Aside, Release The Clips And Remove The Rh Instrument Panel Finish Panel.
    GFD269418Courtesy of FORD MOTOR COMPANY
  5. Remove The Glove Compartment.

    • Remove The Glove Compartment Screws.

    • If Equipped. Disconnect The Electrical Connectors.

    GFD269420Courtesy of FORD MOTOR COMPANY
  6. Disconnect The Electrical Connector, Release The Clips And Remove The Gpsm.

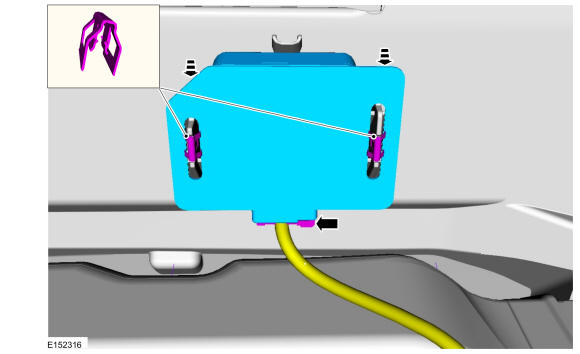

GFD269715Courtesy of FORD MOTOR COMPANY
