Front Controls Interface Module (Fcim): Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

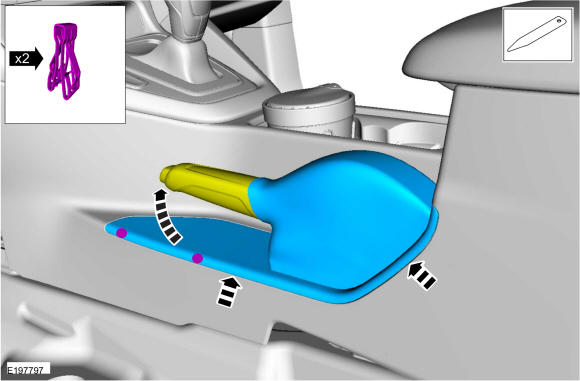

Raise The Parking Brake Handle Release The Clips And Remove The Parking Brake Trim Panel And Boot Over The Parking Brake Handle. Use The General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
NOTE: Automatic Transmission Shown, Manual Transmission Similar.

Remove The Selector Lever Trim Ring. Use The General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Remove The Rh Finish Panel. Use The General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Remove The Instrument Panel Center Finish Panel. Use The General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Release The Clips And Remove The Floor Console Upper Finish Panel. Use The General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Remove The Screws, Release The Clips And Remove The Floor Console Upper Trim Panel.
- Disconnect The Electrical Connectors.
  Torque

  : 18 Lb.In (2 Nm)
Courtesy of FORD MOTOR COMPANY

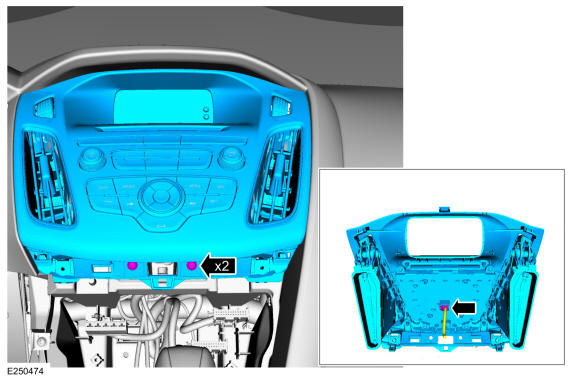

Remove The Screws, Disconnect The Electrical Connector And Remove The Instrument Panel Center Finish Panel.
Torque

: 18 Lb.In (2 Nm)

Courtesy of FORD MOTOR COMPANY

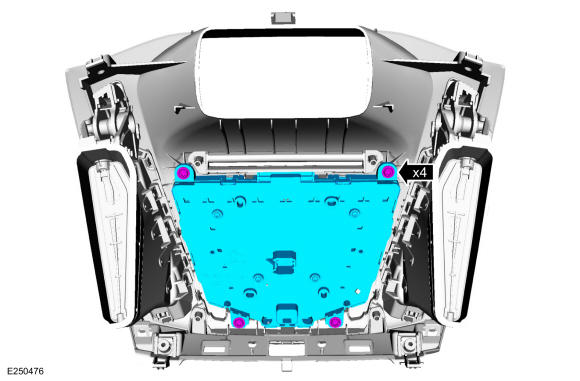

Remove The Screws And The Fcim.
Torque

: 18 Lb.In (2 Nm)

Courtesy of FORD MOTOR COMPANY
