Front Control Display Interface Module (Fcdim): Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal Steps In This Procedure May Contain Installation Details.
  1. WARNING: Before Beginning Any Service Procedure In This Article, Refer To Safety Warnings In General Information (Except Electric) . Failure To Follow This Instruction May Result In Serious Personal Injury.

    Refer To: Health And Safety Precautions .

  2. Remove The Acm. Refer To: Audio Front Control Module (Acm) .

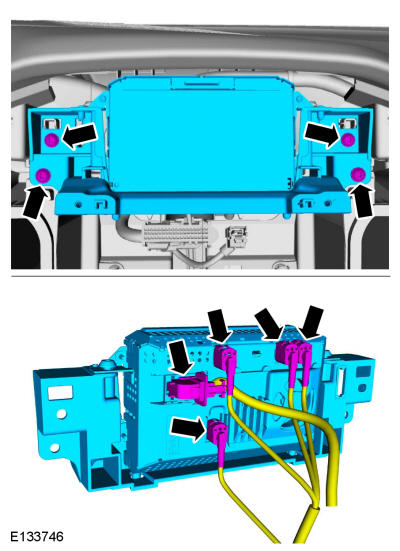

  3. Remove The Screws, Disconnect The Electrical Connectors And Remove The Fcdim.

    Torque

    : 12 Lb.In (1.3 Nm)

    GFD269708Courtesy of FORD MOTOR COMPANY
  4. NOTE: This Step Is Only Necessary When Installing A New Component.

    Install The Fcdim And Tighten The Screws.

    Torque

    : 18 Lb.In (2 Nm)

GFD269709Courtesy of FORD MOTOR COMPANY
