Audio Unit Antenna: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal Steps In This Procedure May Contain Installation Details.
-
WARNING: Before Beginning Any Service Procedure In This Article, Refer To Safety Warnings In General Information (Except Electric) . Failure To Follow This Instruction May Result In Serious Personal Injury.
Refer To: Health And Safety Precautions .
- [References To D-Pillar Trim Panel - 4 Door Sedan, D-Pillar Trim Panel - 5 Door Hatchback: 501-05.]

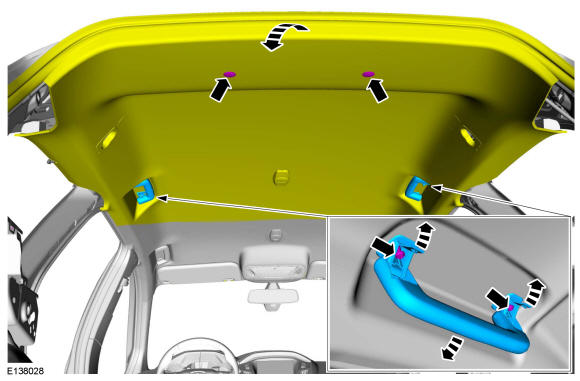

- Lower The Rear Of The Headliner For Access.
- With The Hep Of An Assistant.

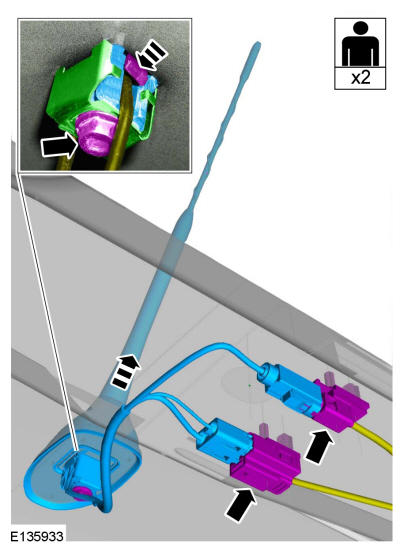

- Disconnect The Electrical Connectors.
- Remove The Bolt, Release The Retaining Tab And Remove The Audio Unit Antenna Mast.
Torque
: 89 Lb.In (10 Nm)
