Audio Unit Antenna Cable: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal Steps In This Procedure May Contain Installation Details.
NOTE:
The Antenna Cables Are Part Of The Vehicle Wiring Harness Because The Cables Cannot Be Removed From The Harness, This Procedure Applies To The Replacement Of The Cables Only.
-
WARNING: Before Beginning Any Service Procedure In This Article, Refer To Safety Warnings In General Information (Except Electric) . Failure To Follow This Instruction May Result In Serious Personal Injury.
Refer To: Health And Safety Precautions .

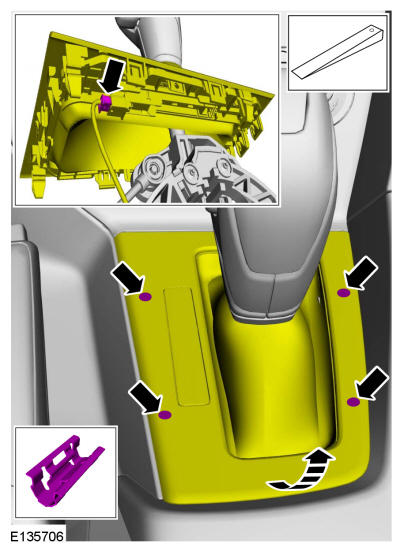

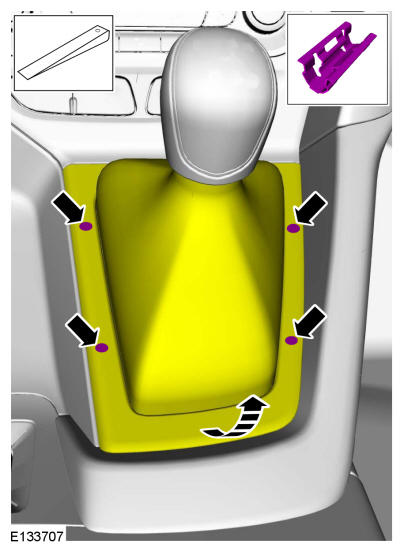

NOTE: Steps 2 Thru 17 Apply For Access To The Lower Antenna Cable Only. - Vehicles With Manual Transmission. Release The Clips And Position The Bezel Aside.
- Vehicles With Automatic Transmission. Release The Clips, Disconnect The Electrical Connector And Position The Bezel Aside.
- Position The Front Door Weatherstrip Aside, Release The Clips And Remove The Lh Instrument Panel Finish Panel.
- If Equipped. Remove The Screws, Release The Clips, Disconnect The Electrical Connectors And Remove The Steering Column Opening Trim Panel. Refer To: Driver Knee Airbag
.

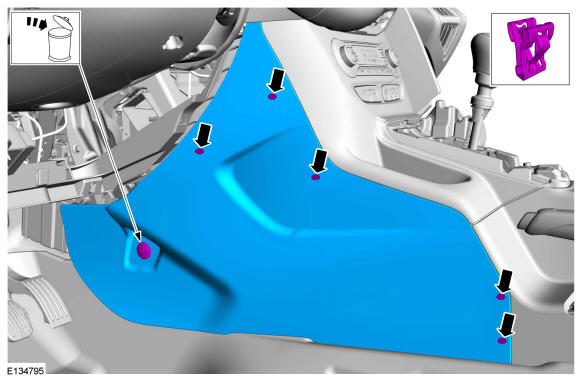

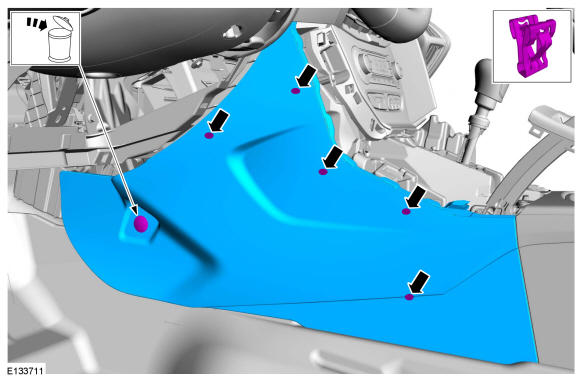

- Vehicles Without Center Armrest. Remove And Discard The Push-Pin, Release The Clips And Remove The Lh Floor Console Side Trim Panel.
- Vehicles With Center Armrest. Remove And Discard The Push-Pin, Release The Clips And Remove The Lh Floor Console Side Trim Panel.

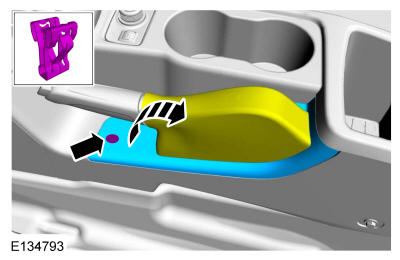

- Vehicles Without Center Armrest. Position Aside The Parking Brake Handle Boot, Release The Clip And Remove The Parking Brake Trim Panel Over The Parking Brake Handle.

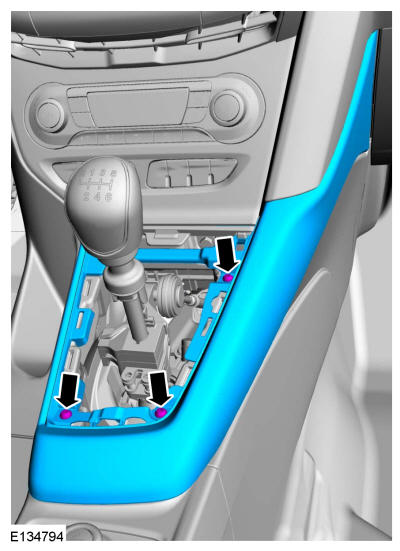

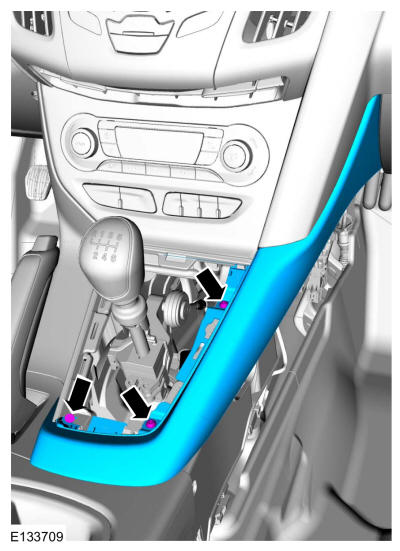

- Vehicles Without Center Armrest. Remove The Screws And The Rh Floor Console Finish Panel.
Torque
: 18 Lb.In (2 Nm)
- Vehicle With Center Armrest. Remove The Screws And The Rh Floor Console Finish Panel.

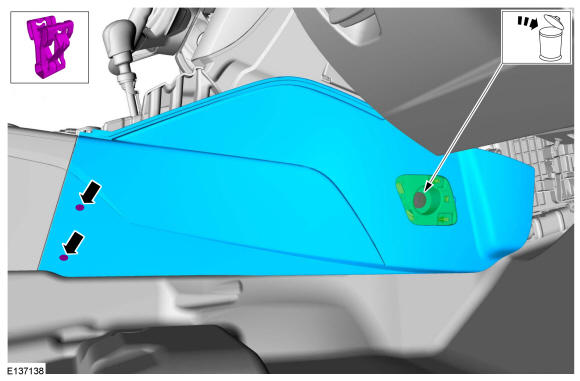

- Remove And Discard The Push-Pin, Release The Clips And Remove The Rh Floor Console Side Trim Panel.
- Vehicles With Center Armrest.
- Position Aside The Parking Brake Lever Trim Panel.

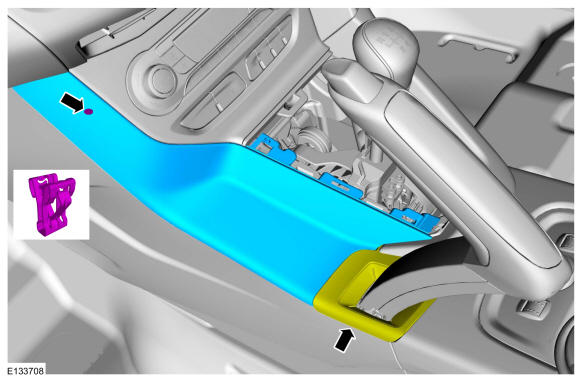

- Release The Clip And Remove The Lh Floor Console Finish Panel.

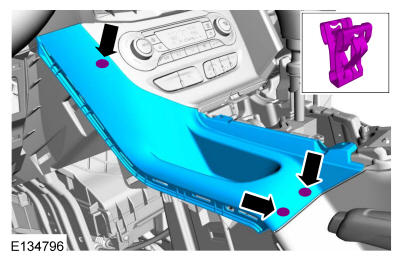

- Vehicles Without Center Armrest. Release The Clips And Remove The Lh Floor Console Finish Panel.NOTE: Sony® Sound Shown, Premium And Base Audio Similar.

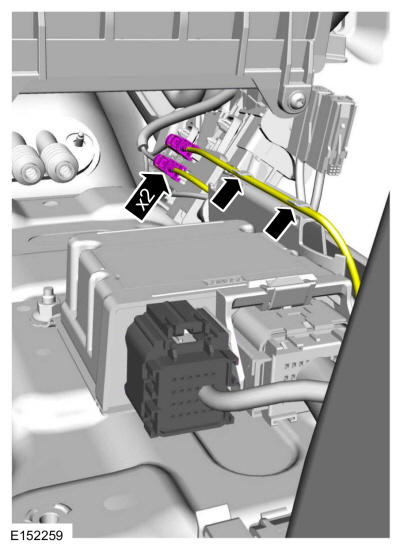

- Disconnect Antenna Connectors.

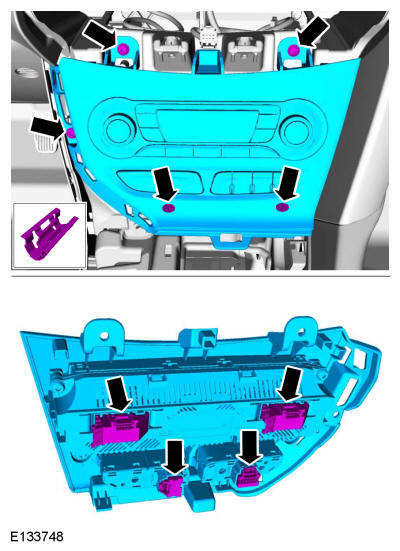

- Remove The Screws, Release The Clips, Disconnect The Electrical Connectors And Remove The Climate Control Assembly.
Torque
: 9 Lb.In (1 Nm)
- Remove The Acm. Refer To: Audio Front Control Module (Acm) Vehicles With: Sony Audio System . refer To: audio Front Control Module (Acm) Vehicles With: Am/Fm/Cd/Sync .
- Disconnect The Electrical Connectors.
-
NOTE: Steps 18 Thru 23 Apply For Access To The Upper Antenna Cable Only.
Remove The Headliner. Refer To: Headliner - 5-Door . refer To: Headliner - 4-Door .

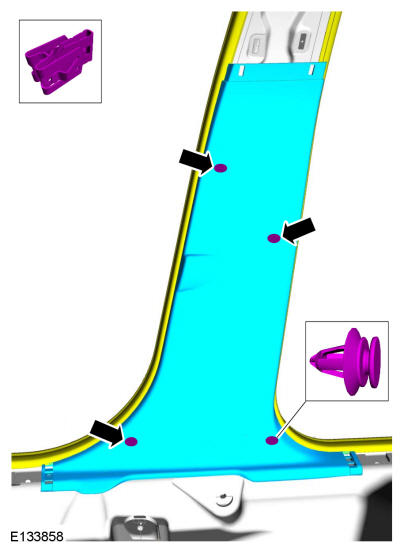

- Remove Lower B-Pillar Trim Panel.
-
NOTE: 5-Door Only
Remove The Following Items:
- Remove The Passenger Front Seat. Refer To: Front Seat .
- Remove The Gearshift Lever. Refer To: Gearshift Lever - 5-Speed Manual Transmission - B5/Ib5/5-Speed Manual Transmission - Mtx75 . refer To: Selector Lever Assembly .
- Remove The Parking Brake Control. Refer To: Parking Brake Control .
- Disconnect Antenna Connectors, Release The Retaining Tabs And Position The Wiring Harness Aside.
- With The Hep Of An Assistant.
- Disconnect The Electrical Connectors.

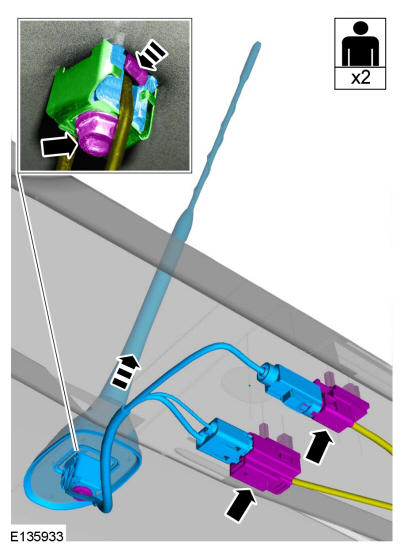

- Remove The Bolt, Release The Retaining Tab And Remove The Audio Unit Antenna Mast.
Torque
: 89 Lb.In (10 Nm)

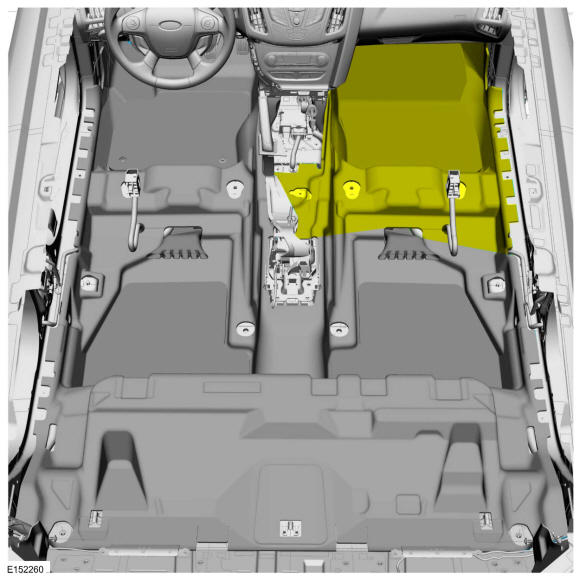

- Position Aside The Rh Front Carpet.
