Audio Input Jack: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal Steps In This Procedure May Contain Installation Details.
  1. WARNING: Before Beginning Any Service Procedure In This Article, Refer To Safety Warnings In General Information (Except Electric) . Failure To Follow This Instruction May Result In Serious Personal Injury.

    Refer To: Health And Safety Precautions .

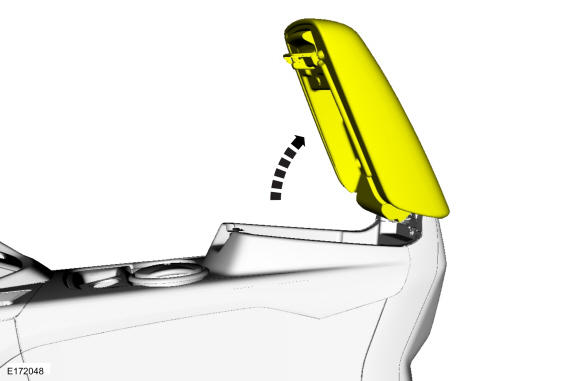

  2. Open The Floor Console Lid.
    GFD269685Courtesy of FORD MOTOR COMPANY

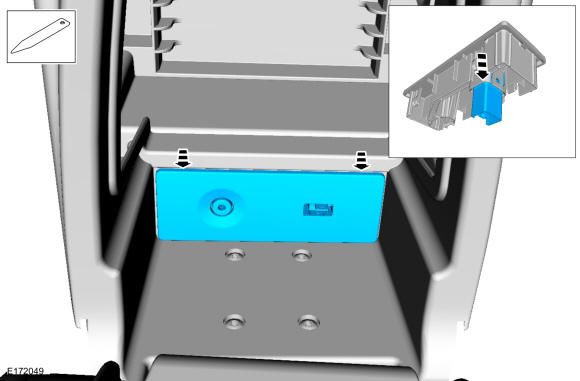

  3. Remove The Audio Input Jack Bezel And The Audio Input Jack.
GFD269686Courtesy of FORD MOTOR COMPANY
