Audio Front Control Module (Acm): Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal Steps In This Procedure May Contain Installation Details.
-
WARNING: Before Beginning Any Service Procedure In This Article, Refer To Safety Warnings In General Information (Except Electric) . Failure To Follow This Instruction May Result In Serious Personal Injury.
Refer To: Health And Safety Precautions .
-
NOTE: If Installing A New Module, It Is Necessary To Upload The Module Configuration Information To The Scan Tool Prior To Removing The Module. This Information Must Be Downloaded Into The New Module After Installation.

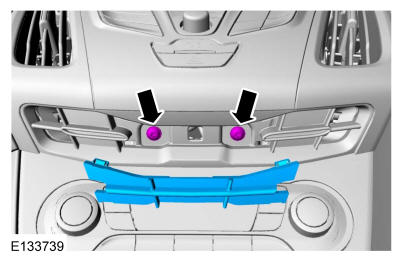

Upload The Acm Configuration Information To The Scan Tool By Following The Scan Tool On Screen Instructions. Remove The Access Cover And The Screws.

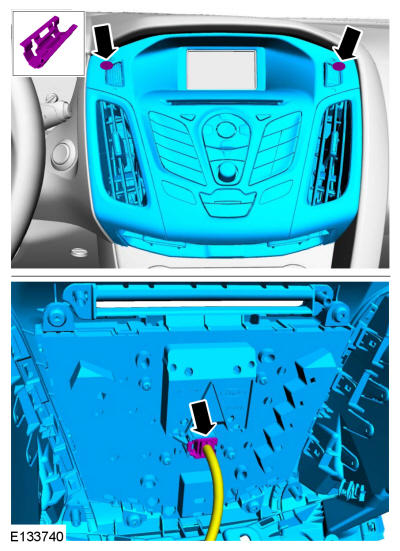

- Release The Clips And Remove The Fcim. Disconnect The Electrical Connector. Use The General Equipment: Interior Trim Remover

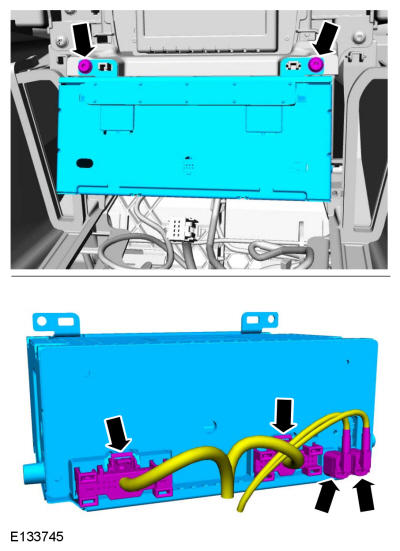

- Remove The Screws And The Acm. Disconnect The Electrical Connectors.
Torque
: 12 Lb.In (1.3 Nm)
