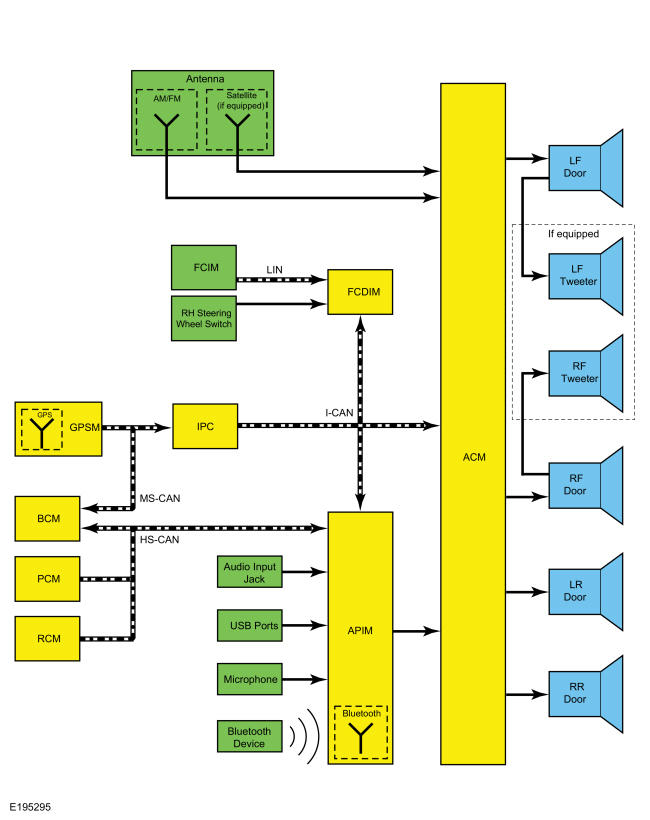

System Diagram
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Bluetooth |
| 2 | Ms-Can |
| 3 | Rhf Door |
| 4 | Antenna |
| 5 | Usb Ports |
| 6 | Audio Input Jack |
| 7 | Rh Steering Wheel Switch |
| 8 | Microphone |
| 9 | Bluetooth Device |
| 10 | Rcm |
| 11 | Pcm |
| 12 | Acm |
| 13 | Apim |
| 14 | Gpsm |
| 15 | Gps |
| 16 | Hs-Can |
| 17 | I-Can |
| 18 | Lin |
| 19 | Am/ Fm |
| 20 | Satellite (If Equipped) |
| 21 | Lhf Door |
| 22 | Lhf Tweeter |
| 23 | Rhf Tweeter |
| 24 | Lhr Door |
| 25 | Rhr Door |
| 26 | Bcm |
| 27 | Fcdim |
| 28 | Fcim |
| 29 | Ipc |
| 30 | If Equipped |
