Information And Entertainment System - Component Location
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|

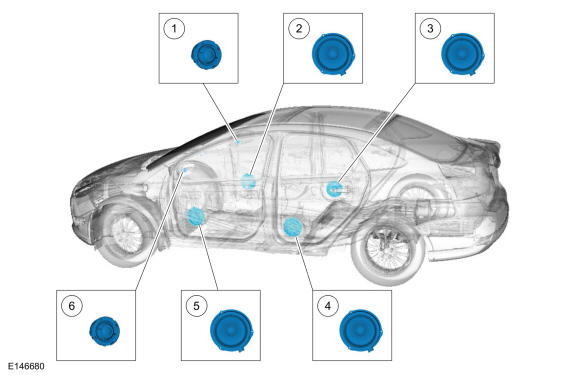

| Item |
Description |
| 1 |
Rh Front Tweeter Speaker (If Equipped) |
| 2 |
Rh Front Door Speaker |
| 3 |
Rh Rear Door Speaker |
| 4 |
Lh Rear Door Speaker |
| 5 |
Lh Front Door Speaker |
| 6 |
Lh Front Tweeter Speaker (If Equipped) |
 Courtesy of FORD MOTOR COMPANY
|

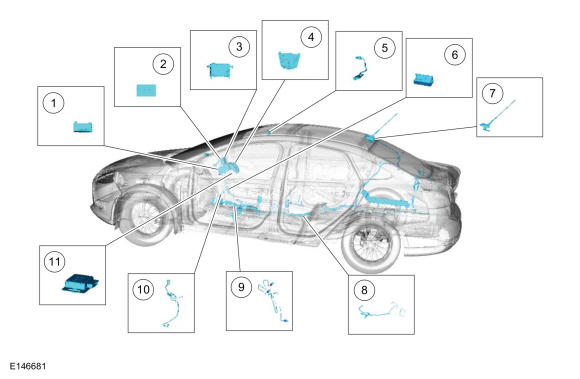

| Item |
Description |
| 1 |
Acm |
| 2 |
Apim |
| 3 |
Fcdim |
| 4 |
Fcim |
| 5 |
Microphone |
| 6 |
Audio Input Jack |
| 7 |
Antenna |
| 8 |
Antenna Cable (Upper) |
| 9 |
Usb Cable |
| 10 |
Antenna Cable (Lower) |
| 11 |
Gpsm, Located Above The Glove Compartment |
