Battery Tray: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .

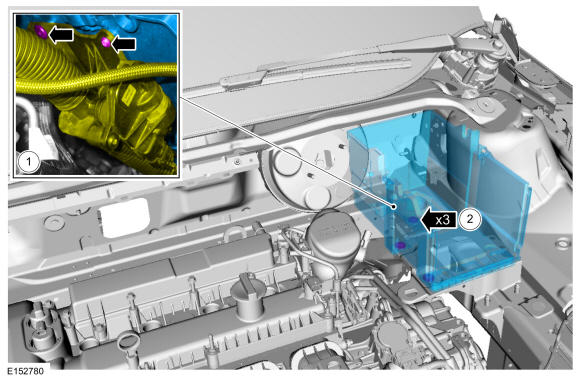

- Remove the battery. Refer to: Battery .
-
- ST vehicles. Remove the screws and position aside the sound symposer actuator valve.
- Remove the bolts and the battery tray.
Torque
: 89 lb.in (10 Nm)
