Battery Cables - 2.3L EcoBoost (257kW/350PS) - MI4: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This procedure provides information about routing, retaining points and connectors of the cable. It does not include the steps for removing components to gain access to the cable.

Refer to: Battery Disconnect and Connect .

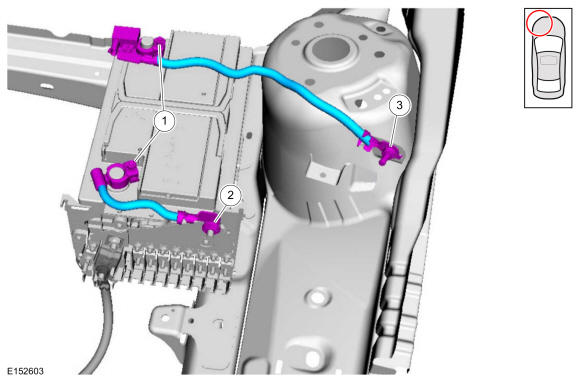

1. Torque
  : 44 lb.in (5 Nm)
2. Torque
  : 89 lb.in (10 Nm)
3. Torque
  : 16 lb.ft (22 Nm)
Courtesy of FORD MOTOR COMPANY
Refer to: Jacking and Lifting - Overview .

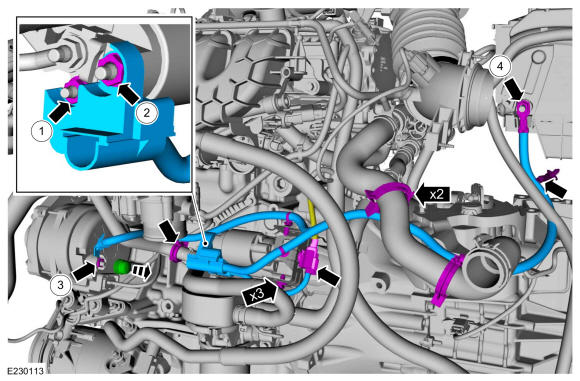

1. Torque
  : 53 lb.in (6 Nm)
2. Torque
  : 106 lb.in (12 Nm)
3. Torque
  : 150 lb.in (17 Nm)
4. Torque
  : 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
