Front Active Park Assist Sensors: Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- Position the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .
-
NOTE: The wheels and tires are shown removed for clarity.

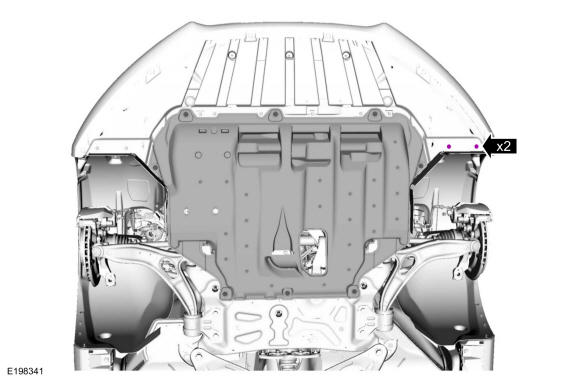

Remove the lower bumper closeout panel-to-inner fender liner screws.

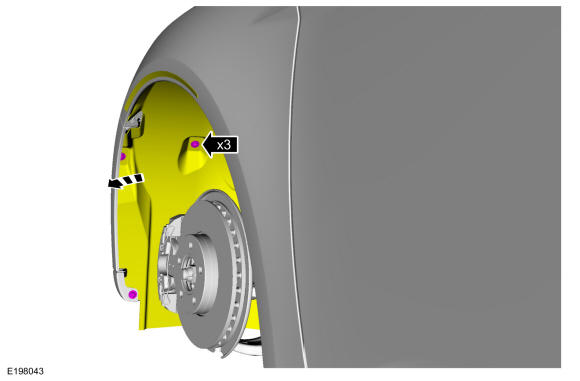

- Remove 3 screws and position the fender liner aside.
- Remove the front active park assist sensor.
- Disconnect the front active park assist sensor electrical connector.
- Release the tabs.
- Remove the front active park assist sensor from the bracket.
