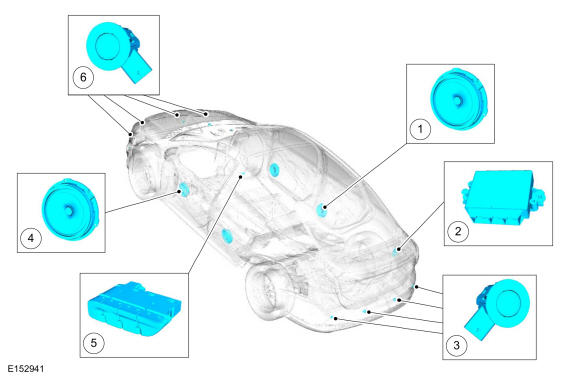

Parking Aid, Audible - Component Location
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Speaker, rear door (part of audio system) |
| 2 |
PAM |
| 3 |
Parking aid sensors, rear |
| 4 |
Speaker, front door (park of audio system) |
| 5 |
Parking aid disable switch (if equipped) |
| 6 |
Parking aid sensors, front (if equipped) |
