Removal And Installation: Horn: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

NOTE: The removal steps in this procedure may include installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Gas engines
Remove the screws and the deflector shield.

Courtesy of FORD MOTOR COMPANY

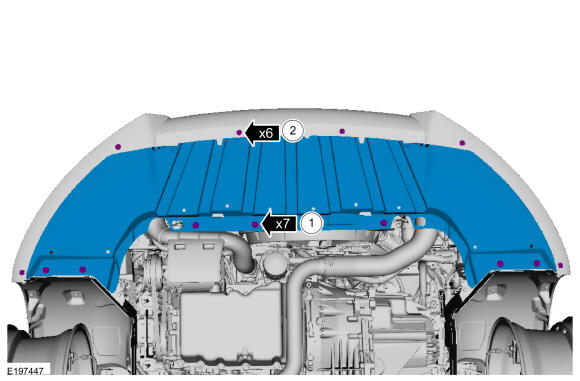

Remove the screws and the engine undershield.

Courtesy of FORD MOTOR COMPANY

All vehicles
Remove the radiator deflector.
1. Remove the screws.
2. Remove the pin-type retainers and the radiator deflector.
Courtesy of FORD MOTOR COMPANY

Left hand side horn
Remove the horn.
1. Disconnect the electrical connector.
2. Remove the pin-type retainer.
3. Remove the nut and the horn.
  Torque

  : 93 lb.in (10.5 Nm)
Courtesy of FORD MOTOR COMPANY

Right hand side horn
Remove the horn.
1. Disconnect the electrical connector.
2. Remove the nut and the horn.
  Torque

  : 17 lb.ft (22.5 Nm)

Courtesy of FORD MOTOR COMPANY
