Instrument Panel Cluster (IPC): Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .
NOTE: If installing a new IPC, it is necessary to upload the module configuration information to the scan tool prior to removing the IPC. This information must be downloaded into the new IPC after installation.

Upload the module configuration information from the IPC into the scan tool by following the scan tool on screen instructions. Record the odometer value from the original IPC. If the odometer value cannot be obtained from the IPC (display failure), perform the diagnostic routine. If the value cannot be obtained after the diagnostic routine, the customer should supply the approximate odometer value.
Position the steering column to the full forward and down position.

Courtesy of FORD MOTOR COMPANY
NOTE: Turn the steering wheel 90° to access the slots.

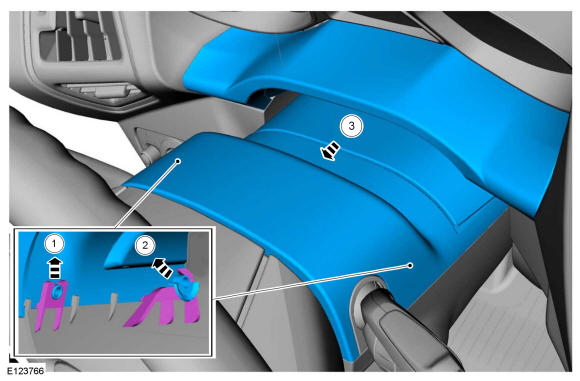

1. Release the RH retaining tab. Use the General Equipment: Flat Headed Screw Driver
2. Release the LH retaining tab. Use the General Equipment: Flat Headed Screw Driver
Courtesy of FORD MOTOR COMPANY
Release the retaining tabs and remove the upper steering column shroud.

Courtesy of FORD MOTOR COMPANY

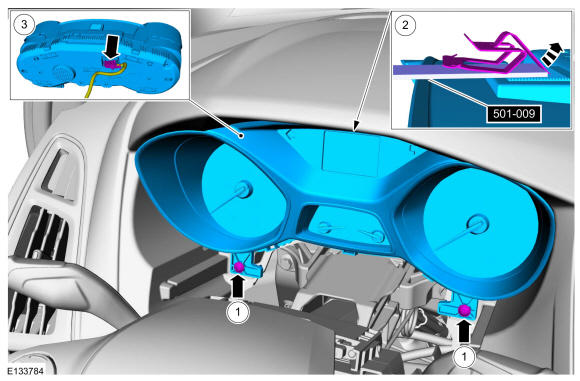

1. Remove the screws.
  Torque

  : 9 lb.in (1 Nm)
2. Release the clip.
3. Disconnect the electrical connector and remove the IPC.

Courtesy of FORD MOTOR COMPANY
