Information Center Module (ICM): Removal
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .

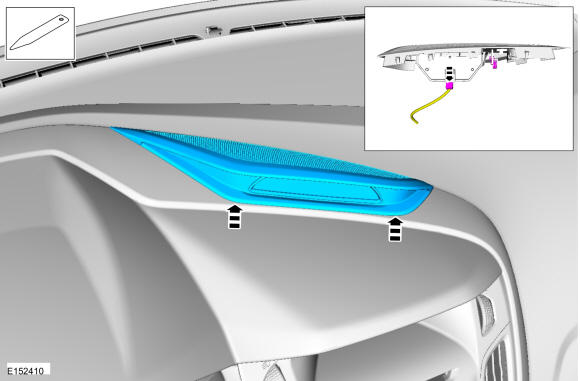

- Release the clips, remove the panel and disconnect the electrical connector.

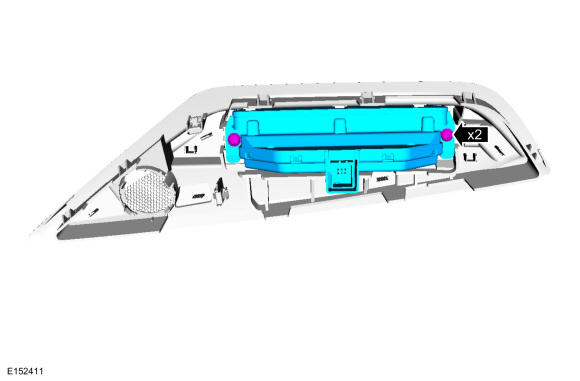

- Remove the screws and the ICM.
Torque
: 14 lb.in (1.6 Nm)
