Compass Module: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not bend or crease the headliner during removal or installation. Failure to follow this will result in damage to the headliner.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. Remove both A-pillar trim panels. Refer to: A-Pillar Trim Panel .
    1. Disconnect the headliner RH electrical connector.
    2. Detach the headliner washer hose coupling.
    3. Release the clips and position the RH wire harness aside.
    GFD269550Courtesy of FORD MOTOR COMPANY
  4. If equipped. Remove the dome lamp and disconnect the electrical connectors.

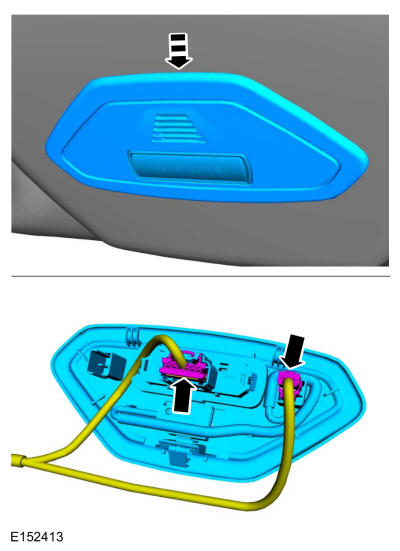

    GFD269551Courtesy of FORD MOTOR COMPANY
  5. If equipped, remove the overhead console. Refer to: Overhead Console .
  6. If equipped. Remove the rear view mirror cover.

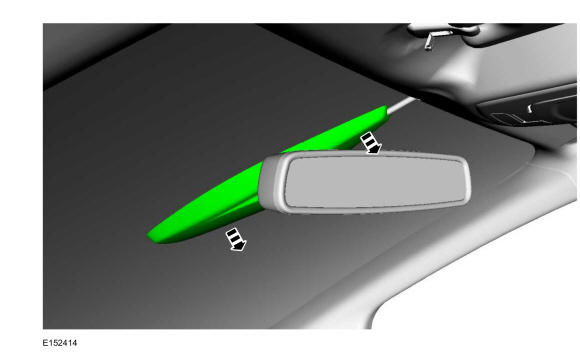

    GFD269552Courtesy of FORD MOTOR COMPANY
  7. If equipped. Disconnect the rear view mirror electrical connector.

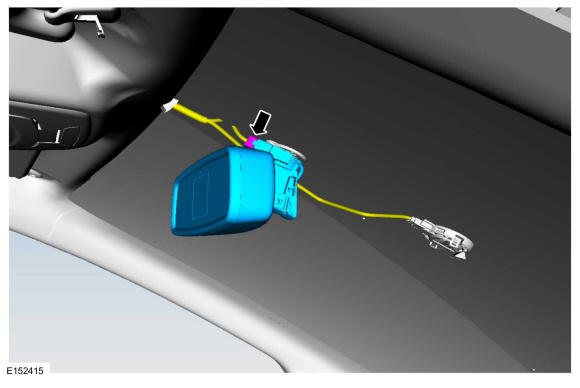

    GFD269553Courtesy of FORD MOTOR COMPANY
  8. Remove the cover, screw, detach the retainers and position aside both upper B-pillar trim panels.
    GFD269554Courtesy of FORD MOTOR COMPANY
  9. Remove both D-pillar trim panels. Refer to: D-Pillar Trim Panel - 5-Door . Refer to: D-Pillar Trim Panel - 4-Door .
  10. NOTE: 4 door vehicles only.

    Remove both upper C-pillar trim panels. Refer to: C-Pillar Upper Trim Panel .

    1. Remove the covers and screws.
    2. Remove both sunvisors.
    3. Disconnect the electrical connector.
    GFD269555Courtesy of FORD MOTOR COMPANY
  12. NOTE: Assist handle shown, garment hooks similar.

    Remove the screws and the passenger front assist handle and both rear garment hooks.

    GFD269556Courtesy of FORD MOTOR COMPANY
  13. NOTE: 5 door vehicles only

    Disconnect and plug the rear window washer hose from the RH D-pillar.

    GFD269557Courtesy of FORD MOTOR COMPANY
  14. NOTE: 5 door shown, 4 door similar.

    Position the front door, rear door and the lifgate dynamic seal aside.

    GFD269558Courtesy of FORD MOTOR COMPANY
  15. Remove the head restraints.
    GFD269559Courtesy of FORD MOTOR COMPANY
  16. Remove the screws, push-pins and position aside the headliner.
    GFD269560Courtesy of FORD MOTOR COMPANY
  17. NOTE: Gently pry the compass module away from the headliner or damage to the headliner may occur.

    Disconnect the electrical connector and remove the compass module.

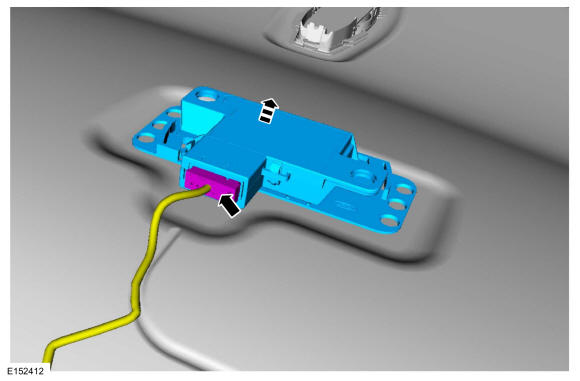

GFD269561Courtesy of FORD MOTOR COMPANY
