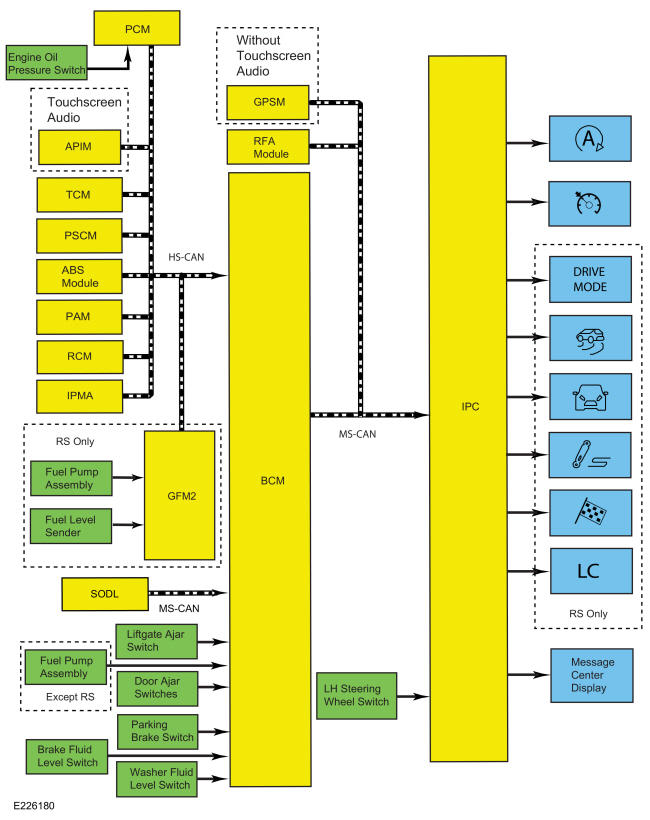

System Diagram
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | RS only |
| 2 | Fuel pump assembly |
| 3 | Washer fluid level switch |
| 4 | Engine oil pressure switch |
| 5 | Message center display |
| 6 | RFA module |
| 7 | LH steering wheel switch |
| 8 | PAM |
| 9 | ABS module |
| 10 | PSCM |
| 11 | RCM |
| 12 | IPC |
| 13 | BCM |
| 14 | TCM |
| 15 | Door ajar switches |
| 16 | Parking brake switch |
| 17 | Brake fluid level switch |
| 18 | Liftgate ajar switch |
| 19 | IPMA |
| 20 | SODL |
| 21 | Touchscreen audio |
| 22 | APIM |
| 23 | Without touchscreen audio |
| 24 | GPSM |
| 25 | PCM |
| 26 | GFM2 |
| 27 | Except RS |
| 28 | Fuel pump assembly |
| 29 | Fuel level sender |
| 30 | RS Only |
