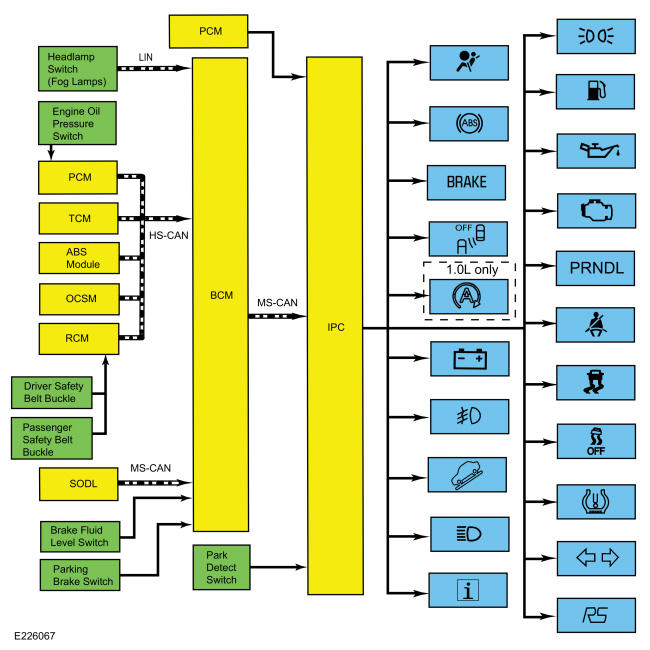

System Diagram - Indicators
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
OCSM |
| 2 |
ABS module |
| 3 |
IPC |
| 4 |
Brake fluid level switch |
| 5 |
Parking brake switch |
| 6 |
Driver safety belt buckle |
| 7 |
Park detect switch |
| 8 |
PCM |
| 9 |
BCM |
| 10 |
Passenger safety belt buckle |
| 11 |
TCM |
| 12 |
Headlamp switch (fog lamps) |
| 13 |
Engine oil pressure switch |
| 14 |
RCM |
| 15 |
SODL |
| 16 |
1.0L only |
| 17 |
PCM |
