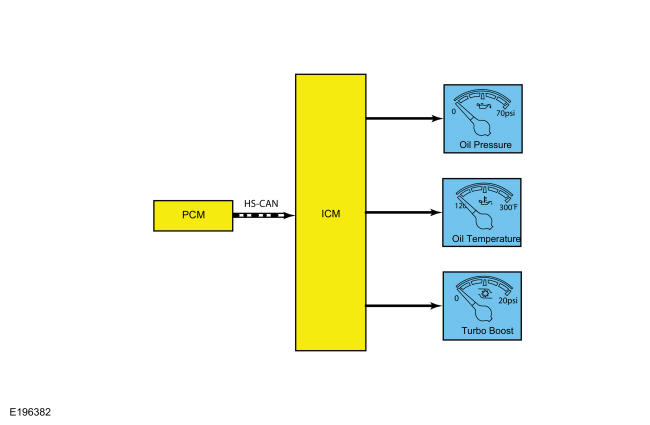

System Diagram - ICM Gauges

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The ST gauges are shown, the RS gauges are similar.
GFD269541Courtesy of FORD MOTOR COMPANY
Item Description
1 ICM
2 PCM
3 Oil pressure
4 Turbo boost
5 Oil temperature
