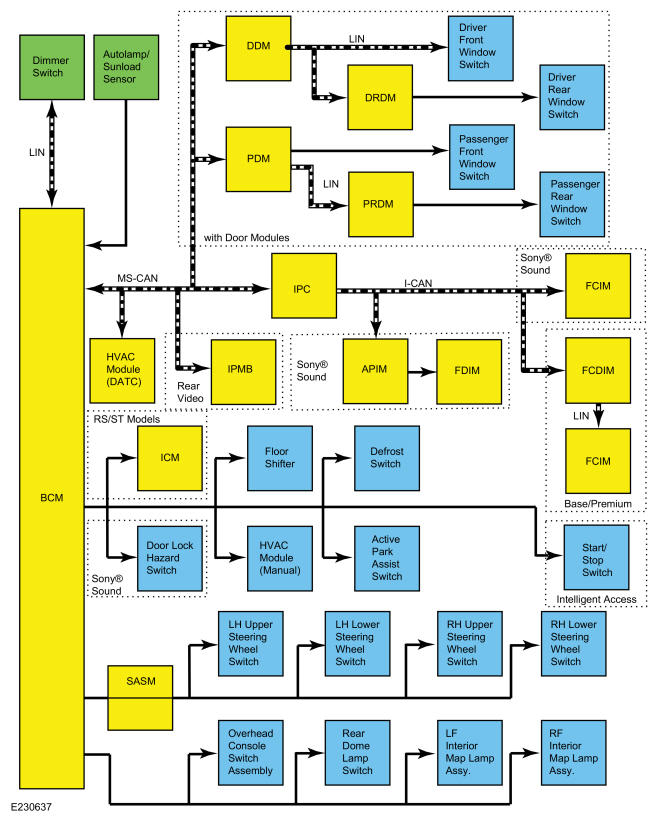

System Diagram
WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | SASM |
| 2 | Dimmer Switch |
| 3 | Autolamp/ Sunload Sensor |
| 4 | DDM |
| 5 | LIN |
| 6 | LIN |
| 7 | LIN |
| 8 | DRDM |
| 9 | PRDM |
| 10 | with Door Modules |
| 11 | PDM |
| 12 | Driver Front Window Switch |
| 13 | Driver Rear Window Switch |
| 14 | Passenger Front Window Switch |
| 15 | Passenger Rear Window Switch |
| 16 | FCIM |
| 17 | FCIM |
| 18 | Base/Premium |
| 19 | RS/ST Models |
| 20 | Sony® Sound |
| 21 | Sony® Sound |
| 22 | Sony® Sound |
| 23 | I-CAN |
| 24 | FDIM |
| 25 | FCDIM |
| 26 | IPC |
| 27 | APIM |
| 28 | IPMB |
| 29 | Rear Video |
| 30 | HVAC Module (DATC) |
| 31 | Defrost Switch |
| 32 | Door Lock Hazard Switch |
| 33 | Floor Shifter |
| 34 | ICM |
| 35 | BCM |
| 36 | HVAC Module (Manual) |
| 37 | Active Park Assist Switch |
| 38 | Start/ Stop Switch |
| 39 | Intelligent Access |
| 40 | Overhead Console Switch Assembly |
| 41 | Rear Dome Lamp Switch |
| 42 | LF Interior Map Lamp Assy. |
| 43 | RF Interior Map Lamp Assy. |
| 44 | RH Lower Steering Wheel Switch |
| 45 | LH Lower Steering Wheel Switch |
| 46 | RH Upper Steering Wheel Switch |
