Electric Booster Heater: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the RH side trim panel.
    GFD269536Courtesy of FORD MOTOR COMPANY

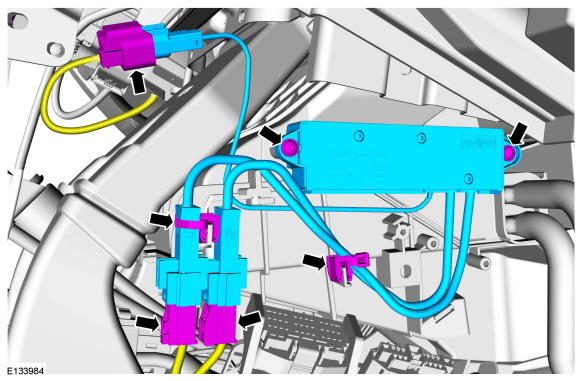

  2. Disconnect the electrical connector, remove the retainers and electric booster heater.
GFD269537Courtesy of FORD MOTOR COMPANY
