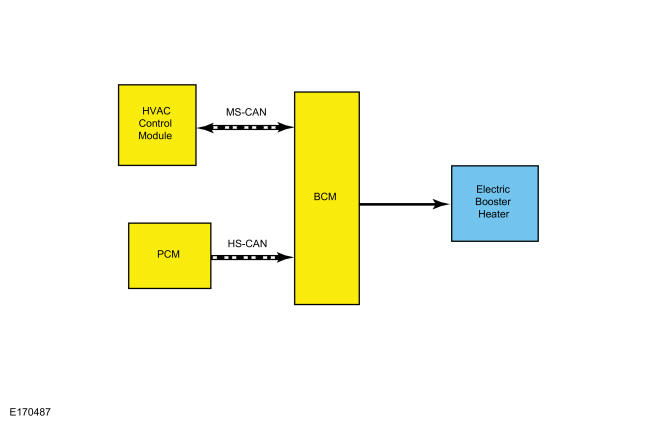

System Diagram

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
GFD269535Courtesy of FORD MOTOR COMPANY
Item Description
1 HS-CAN
2 MS-CAN
3 Electric booster heater
4 PCM
5 BCM
6 HVAC control module
