Section 1562 (Supplemental Climate Control (Except Electric))
>>
Description And Operation
>>
Supplemental Climate Control - Component Location

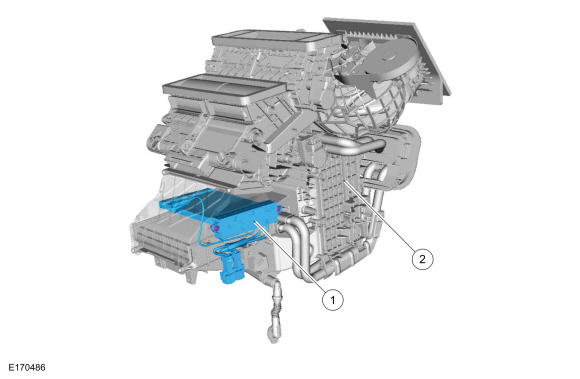

Supplemental Climate Control - Component Location
WARNING:
This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Electric booster heater
2
Heater Core and Evaporator Core Housing
