Thermostatic Expansion Valve Manifold and Tube Assembly - 2.0L EcoBoost (184kW/250PS) - MI4: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to the appropriate Recovery procedure in this article
Remove the cowl panel grille. Refer to: Cowl Panel Grille .
Remove the retainers, position the tube aside and remove the cowl panel bezel.

Courtesy of FORD MOTOR COMPANY
Release the tabs and position the degas bottle aside.

Courtesy of FORD MOTOR COMPANY

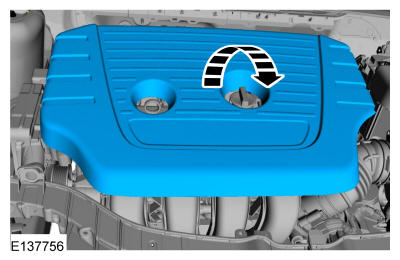

Remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY
Remove the bolt.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the nut.
Torque

: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the nut and thermostatic expansion valve manifold and tube assembly.
- Make sure to cover any open ports to prevent debris from entering the system.
  Torque

  : 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
