Thermostatic Expansion Valve - 2.3L EcoBoost (257kW/350PS) - MI4: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to the appropriate Recovery procedure in this article.
Remove the cowl panel grille. Refer to: Cowl Panel Grille .
Remove the retainers, position the tube aside and remove the cowl panel bezel.

Courtesy of FORD MOTOR COMPANY

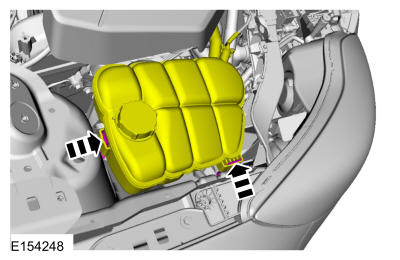

Release the tabs and position the degas bottle aside.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.

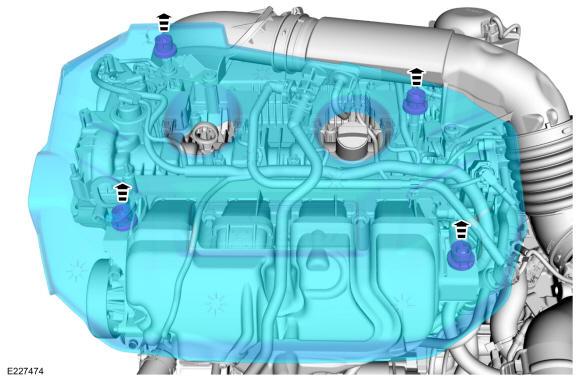

1. Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.
2. After all of the grommets have been released from the studs, remove the appearance cover from the engine.
Courtesy of FORD MOTOR COMPANY
Remove the bolt.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the nut.
Torque

: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the nut and position the thermostatic expansion valve manifold and tube assembly aside.
- Make sure to cover any open ports to prevent debris from entering the system.
  Torque

  : 159 lb.in (18 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the bolts, and thermostatic expansion valve.
- Make sure to cover any open ports to prevent debris from entering the system.
  Torque

  : 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
