Receiver Drier - 2.3L EcoBoost (257kW/350PS) - MI4: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to the appropriate Recovery procedure in this article.
Remove the CAC. Refer to: CHARGE AIR COOLER (CAC)
Release the clip and remove the deflector.

Courtesy of FORD MOTOR COMPANY

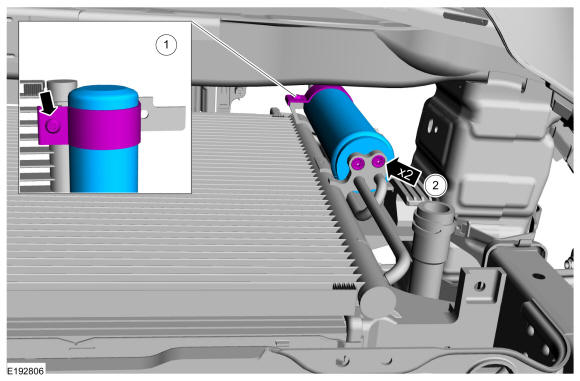

1. Remove the retainer and bracket.
2. Remove the retainers and the receiver drier.
  Torque

  : 44 lb.in (5 Nm)
- Make sure to cover any open ports to prevent debris from entering the system.

Courtesy of FORD MOTOR COMPANY
