Receiver Drier - 2.0L EcoBoost (184kW/250PS) - MI4: Removal

WARNING: This page is about a different car, the 2018 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During the removal of components, cap, tape or otherwise appropriately protect all openings to prevent the ingress of dirt or other contamination. Remove protective materials prior to installation.

NOTE: Removal steps in this procedure may contain installation details.

Recover the refrigerant. Refer to the appropriate Recovery procedure in this article
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped. Remove the retainers and the shield.

Courtesy of FORD MOTOR COMPANY

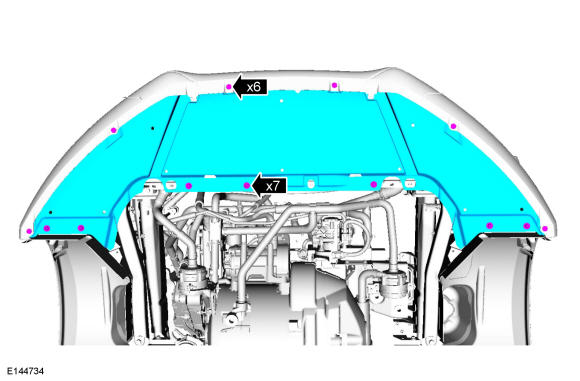

Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the lower radiator splash shield.

Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connectors and detach the wiring harness.

Courtesy of FORD MOTOR COMPANY
1. If equipped. Drill out the rivet. Install a new rivet during installation.
2. Remove the bolts and the lower cooling module bracket.
  Torque

  : 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

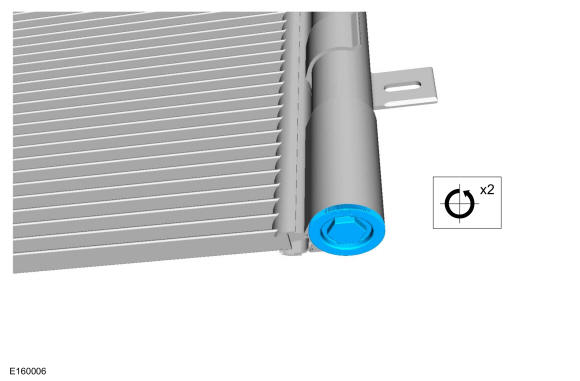

Remove the receiver drier cap.

Courtesy of FORD MOTOR COMPANY

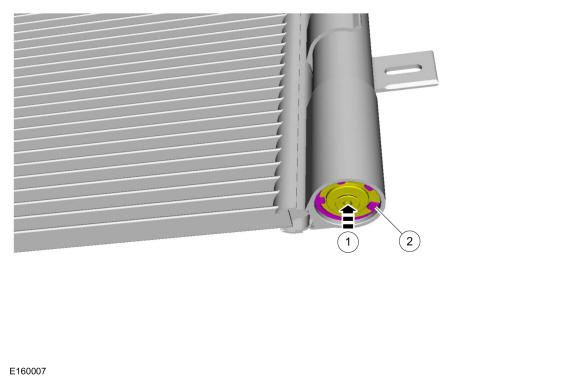

Push the receiver drier plug upwards, remove the snap ring.

Courtesy of FORD MOTOR COMPANY

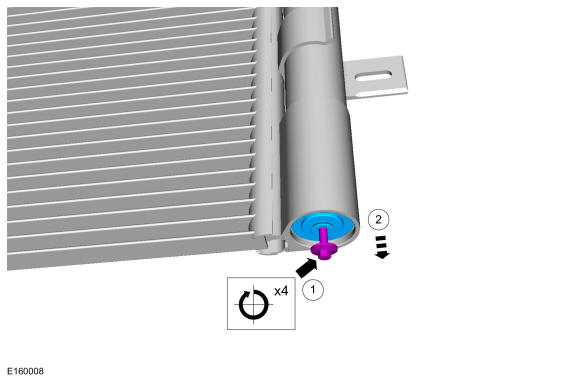

Install an M5 bolt in the center of the receiver drier plug and remove the receiver drier plug.

Courtesy of FORD MOTOR COMPANY

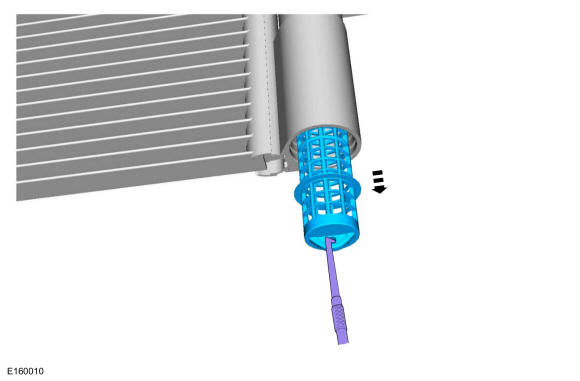

Using a pick tool, remove the receiver drier element.
- Make sure to cover any open ports to prevent debris from entering the system. Use the General Equipment: Pick Hook

Courtesy of FORD MOTOR COMPANY
